Automatic Back Sealing Stick Bag Meal Replacement Powder Packing Machine
- HEYI
- Guangzhou
- 15 days
- 500sets/month
Automatic Back Sealing Stick Bag Meal Replacement Powder Packing Machine,Application
It is suitable for automatic packaging of powder products with poor fluidity in food, health care and pharmaceutical industries, such as: freeze-dried powder, protein powder, gastrodia powder, pueraria powder, stone meal powder, notoginseng powder, whole grain powder, meal replacement powder , milkshake powder, ganoderma powder, bear bile powder, milk powder, coffee powder, solid beverage, etc.
Automatic Back Sealing Stick Bag Meal Replacement Powder Packing Machine
Function and features for Automatic Back Sealing Stick Bag Meal Replacement Powder Packing Machine
1. This stick powder packing machine can finish measuring, and filling and capping for powder or fine granule products, such a s veterinary drugs, additives,
glucose, carbon powder, talcum powder, pesticide powder, essence, etc.
2. Adopts servo motor drive s piral, has advantages of high weighing precision , not easy to wear, and stable performance, etc.
3 Combined-type transparent material hopper , easy dismantle and clean without tools.
4. Use advanced PLC control system, color touch screen display.PLC from Siemens of Germany and Touch display from Omron.
5 . D ischarging mouth has automatic locking device, prevent leakage of material.
6. Machine body and all parts contact product are made by stainless steel, full compliance with GMP standard.
Specifications for Automatic Back Sealing Stick Bag Meal Replacement Powder Packing Machine
Model | HY-QBF50 | HY-BF50 |
Filling range | 1-50ml | 1-50ml |
Sachet size | W：30-100mm L：30-150mm | W：30-100mm L：30-150mm |
Max. film width | 220mm | 220mm |
Sachet type | Stick | Stick |
Filling method | Auger screw | Auger screw |
Control | SIEMENS PLC + TOUCH SCREEEN | EASY PACK control |
Capacity | 30-40ppm | 30-40ppm |
Power | 220V50-60HZ/1.0KW | 220V50-60HZ/1.0KW |
Air | 0.3m³/min 0.6-0.8Mpa | 0.3m³/min 0.6-0.8Mpa |
Dimension(L*W*H) | 880*700*1850mm | 670*850*1755mm |
Weight | 250KG | 200KG |

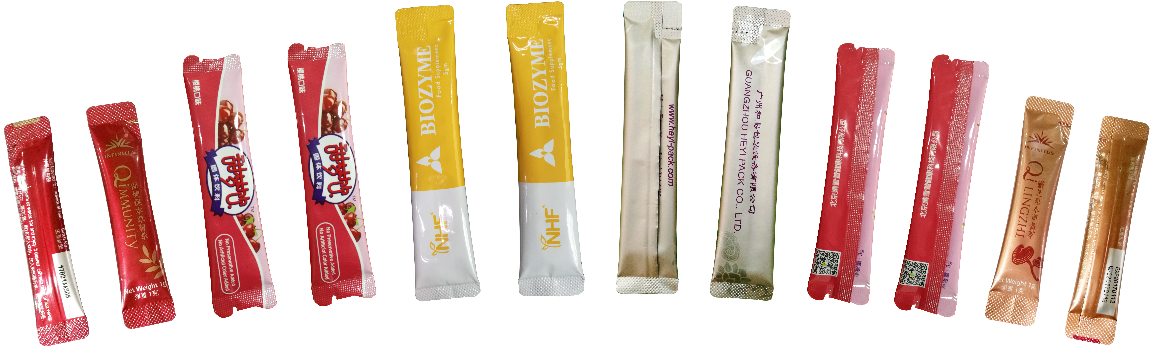

Bag sample:
Guangzhou Heyi Pack Company information:
Our service as below:
After Sales Service:
We offer the Preventative Maintenance and After Sales Service. Our warranty is one year,if you have any problems,you can give us the information.we will give you a feedback with 24 hours.Our engineer will check the problem and take a video to you,to teach you how to fix the problems.
If any parts with problem,we can send the new one to instead of the old one.And you send the old one back to us to fix it.
Installation Services:
we will send the videos and instroduction to you with the machine,you can install the machine by yourself,if you can't do it finally,we can dispatch a engineer to your factory to help you.But Visi fee,round tickets fee is under your cost.
customization:
All stick powder packing machine in our factory can be customized depending on your requirements,We have s20 years uccessful experience ,Our customer all over the world,many of our packing machine is the new generation of the automatic filling and sealing machine in this market. It has the characters like Siemens PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenien.As long as you have your packing idea,we will solve other problems for you.Promise you can get the perfect machine for your project.
