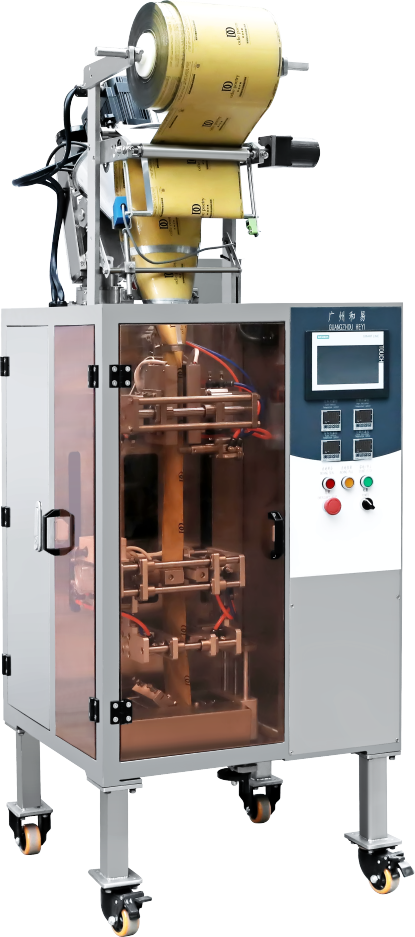

Automatic Multi Function Small Pouch Bean Powder Packaging Machine
- HEYI
- Guangzhou
- 15 days
- 500sets/month
Automatic Multi Function Small Pouch Bean Powder Packaging Machine，With range of machines, we can offer a machine to fill any powder product into a plastic bag(the pouch packaging machine will make the bags automaticlly). Packing range from 1g to 100g.speed is about 1800 to 3000bags/H
Bean Powder Packaging Machine also called FFS machine(Form,Fill and seal)for plastic bags，composite film(normally use 3 layers or 4 layers).just the film can be hot sealed.
Automatic Multi Function Small Pouch Bean Powder Packaging Machine
Application of Automatic Multi Function Small Pouch Bean Powder Packaging Machine
It can be widely used in pharmaceutical, food, chemical,cosmetic field.liquid, paste, paste material of fully automatic packaging. Such as: shampoo, hower gel, face cream, oil, chemical fertilizers, tomato sauce, chili sauce or other material automatic packaging. Such as seed, Chinese traditional medicine, feed, instant drink, pellet, monosodium glutamate, salt, white sugar, soup, coffee, oatmeal, tea, activated carbon, washing powder materials packaging
Specifications of Automatic Multi Function Small Pouch Bean Powder Packaging Machine
Model | HY-QF50 | HY-F50 |
Filling range | 1-50ml | 1-50ml |
Sachet size | W：30-100mm L：30-150mm | W：30-100mm L：30-150mm |
Max. film width | 220mm | 220mm |
Sache type | 3 sides / 4 sides | 3 sides / 4 sides |
Filling method | Auger screw | Auger screw |
Control | SIEMENS PLC + TOUCH SCREEN | EASY PACK CONTROL |
Capacity | 30-40ppm | 30-40ppm |
Power | 220V50-60HZ/1.0KW | 220V50-60HZ/1.0KW |
Air | 0.3m³/min 0.6-0.8Mpa | 0.3m³/min 0.6-0.8Mpa |
Materials | Case and contacting parts SUS304 | Case SUS202;Contacting parts SUS304 |
Dimension(L*W*H) | 880*700*1750mm | 670*850*1655mm |
Weight | 250KG | 200KG |
Main characteristic:
1. More than 20 languages can be chosed,but only two languages cand be put into the system.parameter and function setting can be set by workers,convenient with touch screen.
2.PLC intelligent control from Siemens,operation more steady without stopping machine.
3.Bag length can be set and cut at one step, saving time and film.
3. Self-diagnose function, all the fault will be display on the screen,easy to maintenance.
4. High sensitivity photoelectric eye color tracing, when design the film,you can put the eyemark on the film,photoelectric eye will trace the eye mark.of course,if without the eyemark,you can set the data of the bag length into the syetem,photoelectric eye will work by bag length.cutting position accurate.
5. Temperature(vertical and horizontal) independent PLC control, more suitable for packing different materials.
Main accessories description
Our automatic packing machine is premade according to customers’ requestment. When you want to change the bag size or type of bag ,you can change the mould.
width of the bag: it has only one size for bag former。If you have new width, need to change new bag former instead of old one
Auger Filler: if the customer want 0.25g, the volume can be 0.25-0.5g , If the customer’s volume is more than 0.5g or less than 0.25g, they must change new set of auger filler instead of one
3, Printer : one roll of color film can be used for three days if work 24 hours one day, ,but depond on the daily production,if it finish ,just insteaf of the new one

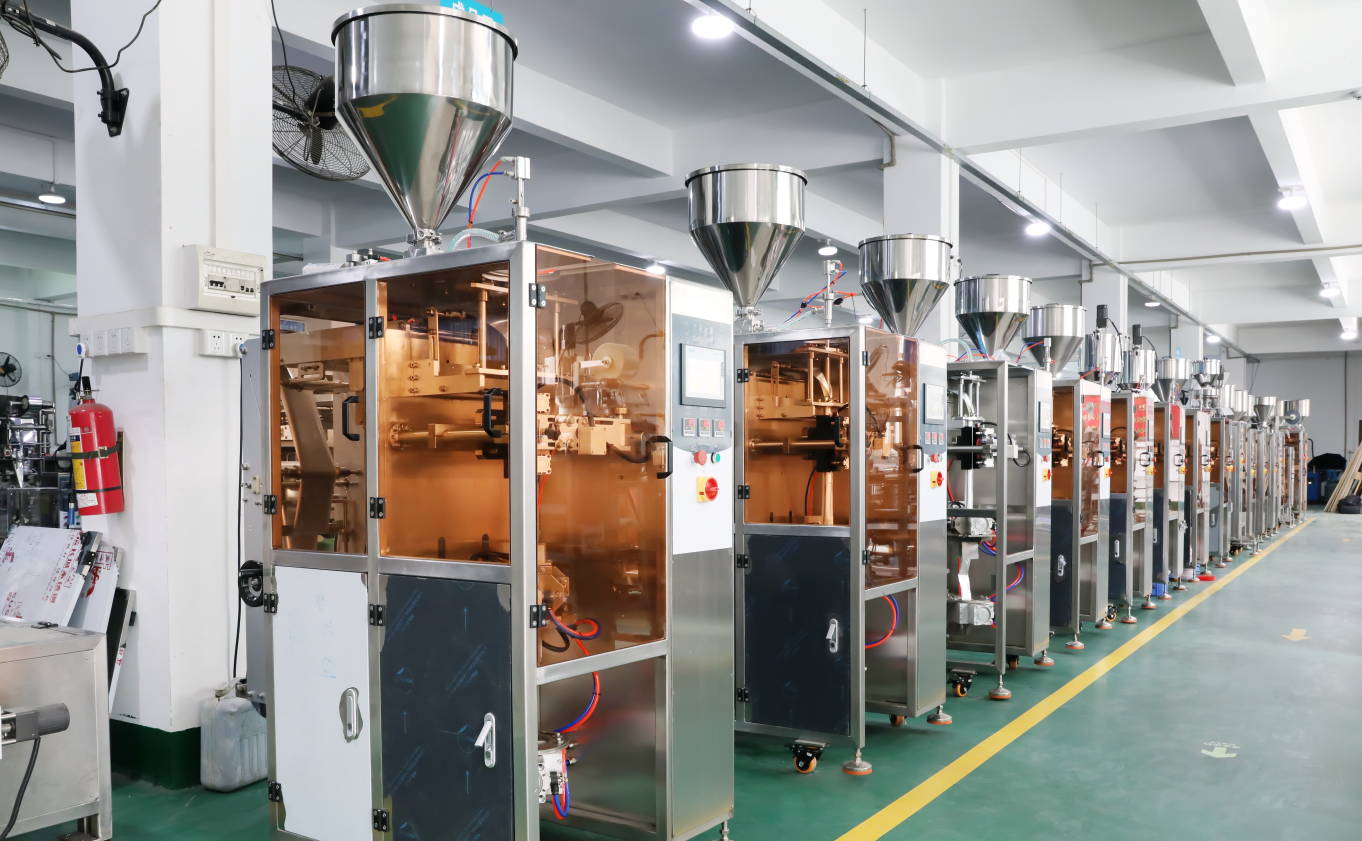

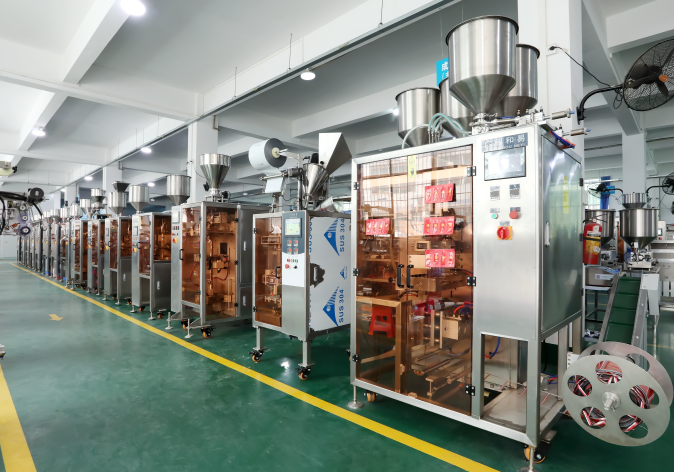

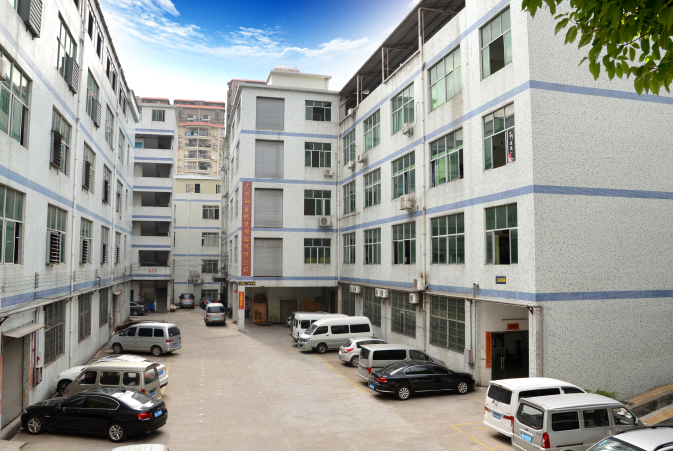

Company information:
FAQ:
1. A: Are you factory?How many workers do you have?
B: Yes,we are factory. Our factory is in Guangzhou,near guangzhou airport. We have about 100 workers in our factory and we have 20 years expirence on cosmetic ,food etc packing machinery.
2. A: What about after sale service?
B: We provide one years warranty .
3. A: What about installation?
B: Our engineer can be sent to your country. but customer should pay the air tickets. besides, customer should arrange the accommodation for them during the trip.
4. A: What do we do if we encounter problem about the machine ?
B: Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from large machine, our engineer will go to your factory (customer will pay the fee during the trip).
5. A: How can you control the quality and delivery?
B: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery .if you have time,welcome to visit our factory.
