Automatic Multi Lanes medicinal granules back stick packing machine
Application
It is suitable for automatic packaging of liquid particles with good fluidity in food, health care and pharmaceutical industries, such as instant coffee, solid beverage, fruit enzyme powder, Baoji pills, white sugar, granules, Chinese medicine granules, etc.
Automatic Multi Lanes medicinal granules back stick packing machine
Main characteristic:
1.By using PLC control,the machine has functions of photoelectric tracking and correcting the crook.
2.Precisely automatically adjust the length of bag.
3.The problems will be shown on the operational screen, convenience for checking and maintenance.
4.Automatically stop when overheated,ensuring the quality of sealing.will give you warn even you open the safety door.
5.Conform to the GMP industrial standard,steady,stead, easy maintenance and high efficiency.
6.Different filling devices come up with different packing for powder,liquid,grain and cream.
Specifications
Model | HY-YK520 | HY-YK720 |
Filling range | 1-20ml | 1-50ml |
Rows | 1by6 | 1by6, 1by8, 1by10 |
Sachet size | W：25-38mm L：30-170mm | W：25-55mm L：30-170mm |
Max. film width | 520mm | 720mm |
Sachet type | Stick with round corners | Stick with round corners |
Filling method | Volumetric cups | Volumetric cups |
Capacity | 120-200ppm | 200-350ppm |
Power Voltage and consumption | 220V50-60HZ/4.5KW | 220V50-60HZ/4.5KW |
Air pressure and consumption | 0.6m³/min 0.6-0.8Mpa | 0.6m³/min 0.6-0.8Mpa |
Dimension(L*W*H) | 1410*1700*2500mm | 1540*1700*2500mm |
Weight | 600KG | 650KG |
Packaging film materials | PE laminated film, such as PET/AL/PE, PET/PE, Nylon/PE, etc. Thickness: 0.08~0.12mm(3 or 4 layers) Inner core diameter：75mm Outer roll diameter：500mm | |
This fast speed and high accuracy granular packing machine,used for different powder,granular small stick bag packing.like some probiotics,3 in 1 granular coffee,within 10g,bag length is flexible，you can increase the bag length to pack more.about 200 to 500 bags/min,for some big company and big production requirements product packing.

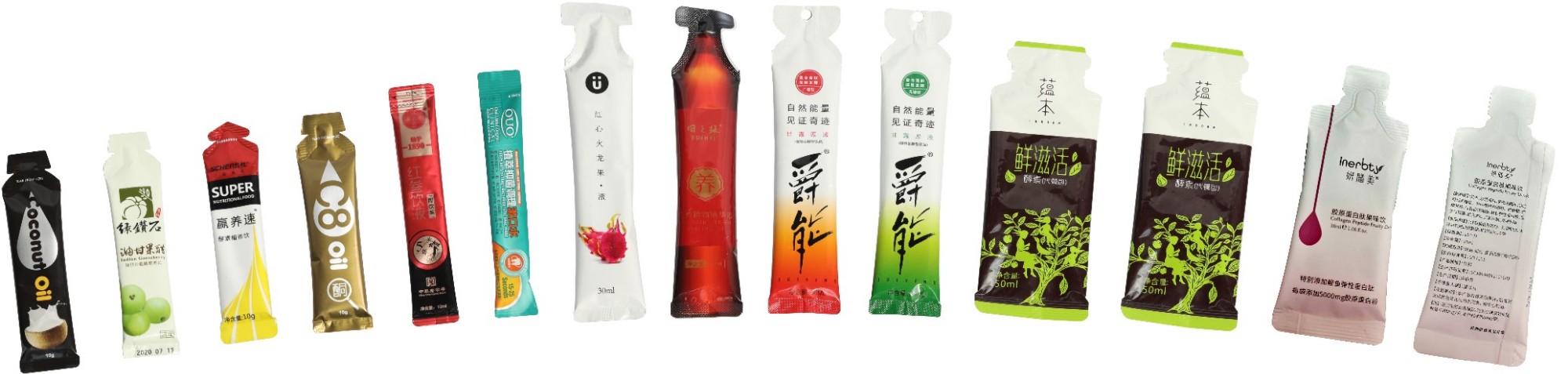

Bag type is customized,you can pack stick bag with zigzag notch or flat nortch,or round corner bag type.even some irregular shape bag type.
