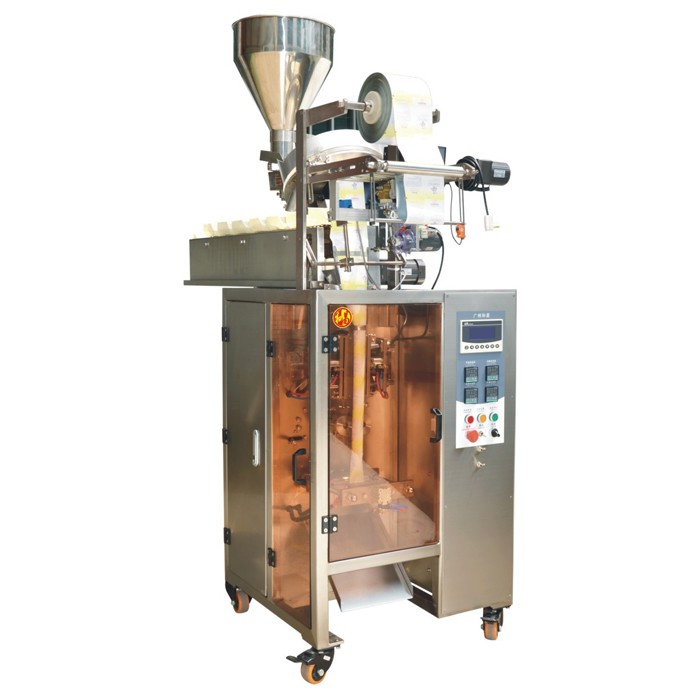

Automatic Multi Material Small Plastic Bag Granular Packing Machine
- HEYI PACK
- Guangzhou, China
- 15 days
- 10000sets per year
Automatic Multi Material Small Plastic Bag Granular Packing Machine application It is specially designed for the instant noodle seasoning package market. It realizes the separate measurement of dehydrated vegetables, dried laver, sesame seeds and other products. It adopts 4 vibrating plates to control the cutting and realize high-speed automatic production.
Automatic Multi Material Small Plastic Bag Granular Packing Machine
Features:
1. Adopt high configuration: German Siemens PLC controller, touch screen; Taiwan AIRTAC cylinder; France Schneider switching power supply;
2. Pull the bag with puller, the bag is accurate, and the bag is not easy to be deformed;
3. Using Easy Pack control, each program operates with high precision;
4. Fully electric control, using 1:20 reducer to control the sealing and pulling bag to achieve high speed packaging;
5. Material: The material contact part is made of SUS304 stainless steel, which meets the requirements of GMP production.
6. The heat-generating parts and moving parts are hidden in the protective cover and are safe to operate.
7. The equipment is equipped with casters for easy handling and movement.8
8. The feature of the new sealing,hot cutting technology which make the adjustment is more simple and convenient.
9. The high automatically.The process of bag making,filling,hung line,hung tag,cutting,finished product conveying,etc.It is a high rate of cost products.
10. Certification:CE
Specifications for Automatic Multi Material Small Plastic Bag Granular Packing Machine
Model | HY-DWL100 |
Filling range | 1-100ml |
Sachet size | W：30-100mm L：30-150mm |
Max. film width | 220mm |
Sachet type | 3 sides / pillow stick |
Filling method | Vibration plate / volumetric cups, etc. |
Control | SIEMENS PLC + TOUCH SCREEN |
Capacity | 25-50ppm |
Power | 220V50-60HZ/1.5KW |
Dimension(L*W*H) | 1200X3500X1600mm |
Weight | 500KG |
Applications:
It is suitable for automatically packing multi packing materials. (eg: granular+liquid，granular+powder，powder+liquid ，also can make granular+powder+liquid pack all together within one package)
Bag sample:
