Automatic Sachets Soybean Sauce Paste Packing Machine
- Heyi
- Guangzhou
- 15 days
- 500sets/month
Mechanical characteristics and product characteristics:
1. The equipment is easy to operate and easy to maintain.
2. The whole bracket is made of all stainless steel, non-outsourced stainless steel;
3. The equipment is compatible, and different specifications can be realized by changing the mold;
4. Select a suitable metering pump body according to the material characteristics, and some materials can increase the fluidity of the constant temperature mixing tank to keep the material body;
5. Auxiliary equipment: loading machine + ribbon coding machine
Automatic Sachets Soybean Sauce Paste Packing Machine
Specifications for Automatic Sachets Soybean Sauce Paste Packing Machine
Model | HY-QY50 | HY-Y50 |
Filling range | 1-50ml | 1-50ml |
Sachet size | W：30-100mm L：30-150mm | W：30-100mm L：30-150mm |
Max. film width | 220mm | 220mm |
Sachet type | 3 sides / 4 sides | 3 sides / 4 sides |
Filling method | Piston pump / magnetic pump | Piston pump / magnetic pump |
Control | SIEMENS PLC + TOUCH SCREEN | EASY PACK CONTROL |
Capacity | 30-50ppm | 30-50ppm |
Power | 220V50-60HZ/1.0KW | 220V50-60HZ/1.0KW |
Air | 0.3m³/min 0.6-0.8Mpa | 0.3m³/min 0.6-0.8Mpa |
Materials | Case and contacting parts SUS304 | Case SUS202;Contacting parts SUS304 |
Dimension(L*W*H) | 880*700*1750mm | 670*850*1655mm |
Weight | 250KG | 200KG |

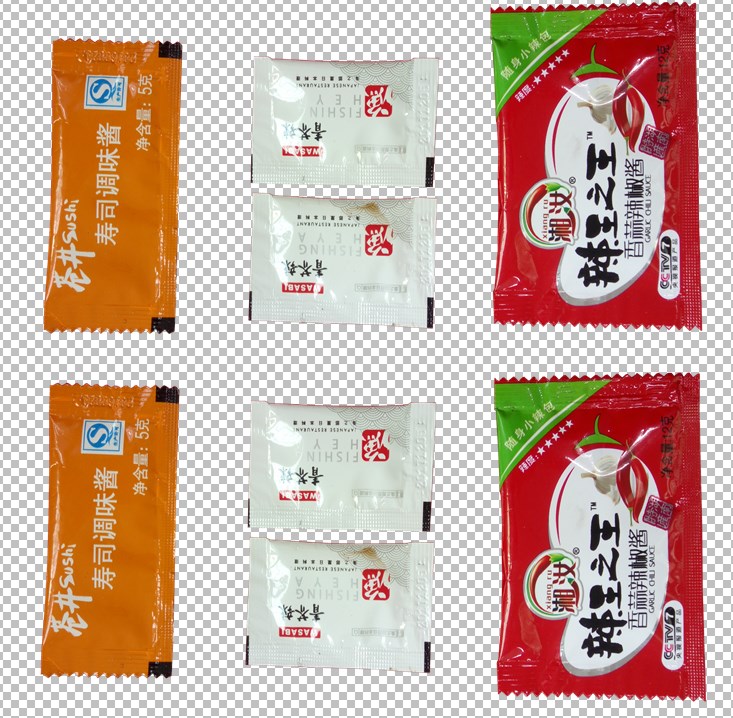

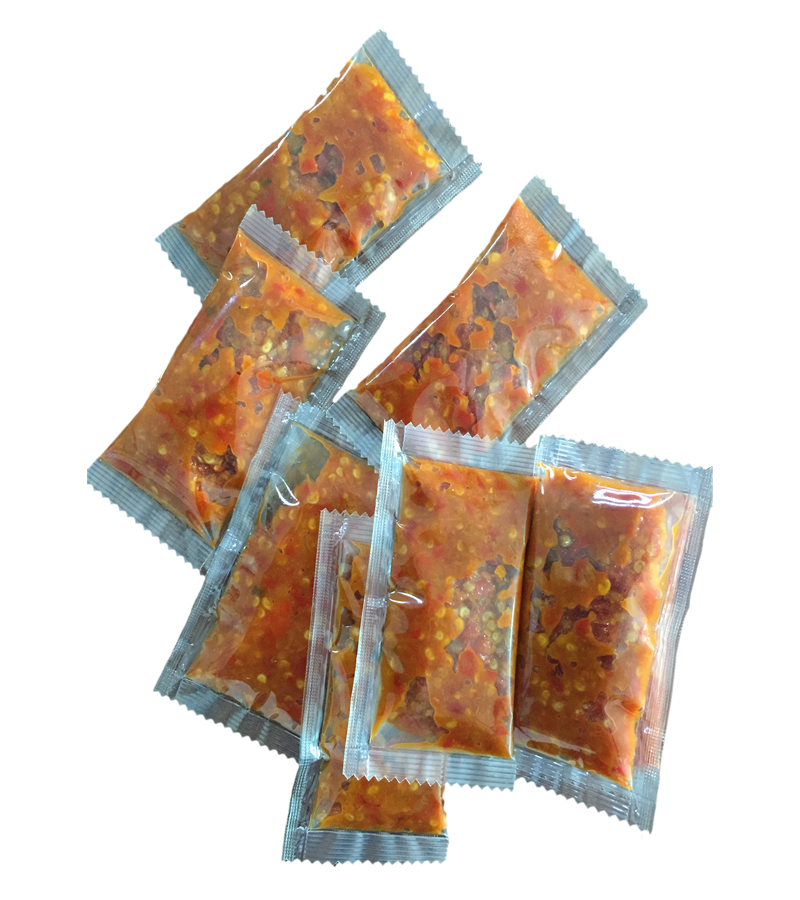

Bag sample as below:
1. An easy pack system is adopted to control statuses of all functions of the machine,
including: Setting bag lengths, stopping machine for certain bags, accumulating manufacture
quantity, displaying manufacture quantity, setting overall production stop, optic/electric shift etc.,
it is a kind of new automatic packing machine with a relatively high intelligence..
2. Intelligent electro-optical orientation, able to shift between light-on and dark-on, strong
anti-intervention ability, stopping and altering after tree-bag cursor abnormal operation
3. Intelligent electro-optical orientation, able to shift between light-on and dark-on, strong
anti-intervention ability, stopping and altering after tree-bag cursor abnormal operation.
