Automatic Special Irregular Shape Hand Cream Sachet Packing Machine
- HEYI
- Guangzhou
- 15 days
- 100sets/month
Automatic Special Irregular Shape Hand Cream Sachet Packing Machine,it is vertical packing machine.Suitable for automatic packaging of liquid paste products in cosmetics, food, health care, pharmaceutical industry, such as: cleanser, skin cream, mask mud, repair cream, essence milk, liquid, lotion, shampoo, conditioner, hair mask, fog eyebrow milk, etc.; chili sauce, soy sauce, mustard sauce, salad dressing, tomato sauce, etc.; energy drink, energy jelly, energy supplement, etc.; syrup, red ginseng drink, antibacterial cream, dampness Cream, acne cream, etc.

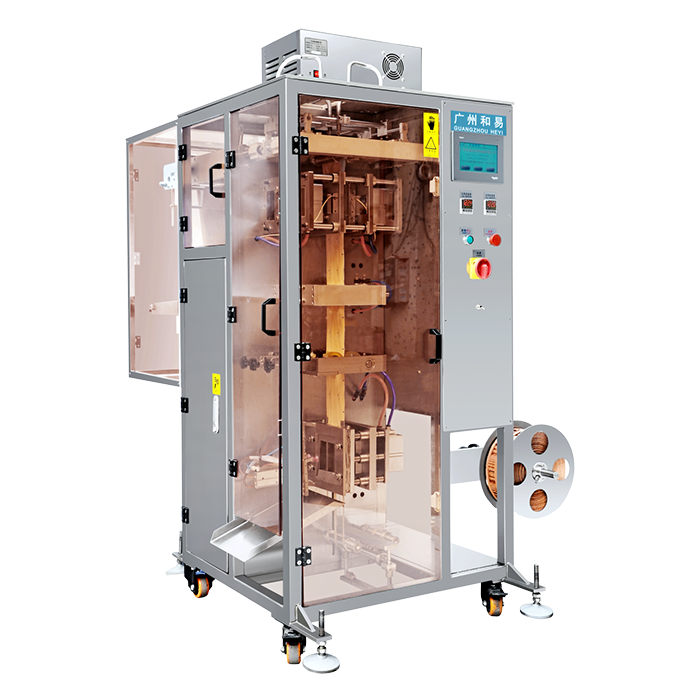

Automatic Special Irregular Shape Hand Cream Sachet Packing Machine
Specifications for Automatic Special Irregular Shape Hand Cream Sachet Packing Machine
Model Number | HY-IY320 |
Filling Range | 1-20ml/10-50ml |
Sachet size | W:30-130mm L:30-170mm |
Max. film width | 320mm |
Sachet type | Irregular shape sachet |
Filling method | Pneumatic pump / magnetic pump |
Capacity | 25-40 ppm |
Power Voltage and consumption | 220V50-60HZ/4.5KW |
Air pressure and consumption | 0.4m³/min 0.6-0.8Mpa |
Dimension(L*W*H) | 920*1291*2173mm |
Weight | 450KG |
Packaging film materials | PE laminated film, such as PET/AL/PE, PET/PE, Nylon/PE, etc. Thickness: 0.08~0.12mm(3 or 4 layers) Inner core diameter：75mm Outer roll diameter：300mm-500mm |
Feature for Automatic Special Irregular Shape Hand Cream Sachet Packing Machine
Irregular shaped bags packaging machine can full automatic carry out the process of sachet forming, filling and sealing, also can add date and batch number printing device,
Packaging products can have different bag type.It is up to your own design.
With easy tearing mouth device, for customers to open the packaging bag conveniently.
Using PLCmicro computer controller and Stepping motor with photoelectric switch position, easy to adjust length, precisely bag-making.
Using rotate measuring cup, lower the volume error, more accurate measurement.
Greatly enhance the stability of equipment, lower noise, cleaning convenient, reduce the maintenance cost.
Sealing tight, avoid leak or get damp.
Film feeding pinch mechanism, film with a little static can also be used.
High working speed, prevent Material leakage, no more dust.
10,When the roll film is end, machine will stop running automatically. It can automatic detect the fault.

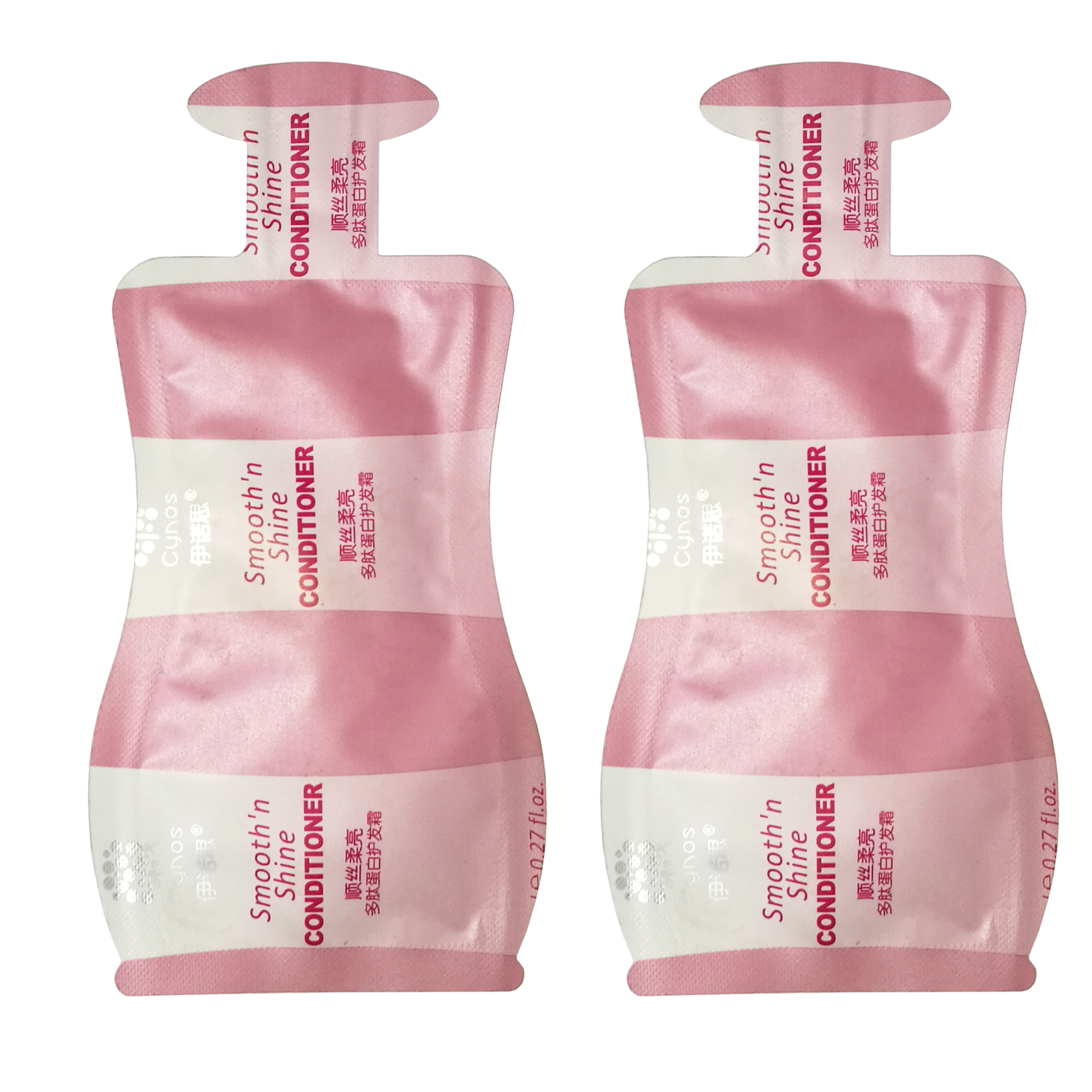

Bag sample:
Mechanical characteristics and product characteristics:
1. Suitable for trial packaging of 1-50ml emulsion cream or water-based products;
2. This host can be customized one out, or one out of two (single or double);
3. The die cutting die is formed once, the cut is flat, no wrong side, no burrs;
4. Punching die adopts HKS-9 material, after six processing techniques, high durability and long service life
5. The equipment is easy to operate, and one ordinary female worker can see 3 sets of equipment;
Packing and shipping:
