Automatic Special Irregular Shape Mask Mud Sachet Packing Machine
- HEYI
- Guangzhou
- 15 days
- 500sets/month
Automatic Special Irregular Shape Mask Mud Sachet Packing Machine,normally used for some cosmetic product，the bag type is 4 side sealing irregular shaped bag type.You can have your own bag design,we will do the packaging machine per your requirements.
For irregular shaped bag,it is a new bag design for this market.bag design is different from each company.if you don't have a idea from the starting,we also can send many design from other cuistomer to you for reference.
Automatic Special Irregular Shape Mask Mud Sachet Packing Machine
Specifications for Automatic Special Irregular Shape Mask Mud Sachet Packing Machine
Model Number | HY-Y30 |
Filling Range | 1-20ml |
Sachet size | W:30-65mm L:30-120mm |
Max. film width | 150mm |
Sachet type | Irregular shape sachet |
Filling method | Pneumatic pump / magenetic pump |
Capacity | 25-40 ppm |
Power Voltage and consumption | 220V50-60HZ/2KW |
Air pressure and consumption | 0.35m³/min 0.6-0.8Mpa |
Dimension(L*W*H) | 2041X703X1679mm |
Weight | 350KG |
Packaging film materials | PE laminated film, such as PET/AL/PE, PET/PE, Nylon/PE, etc. Thickness: 0.08~0.12mm(3 or 4 layers) Inner core diameter：75mm Outer roll diameter：300mm |

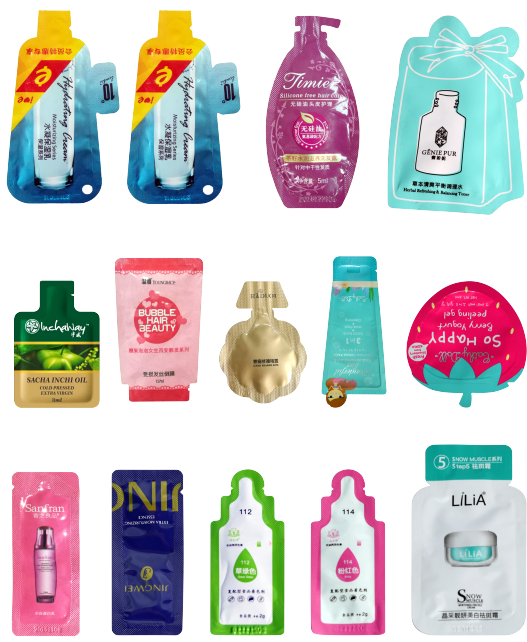

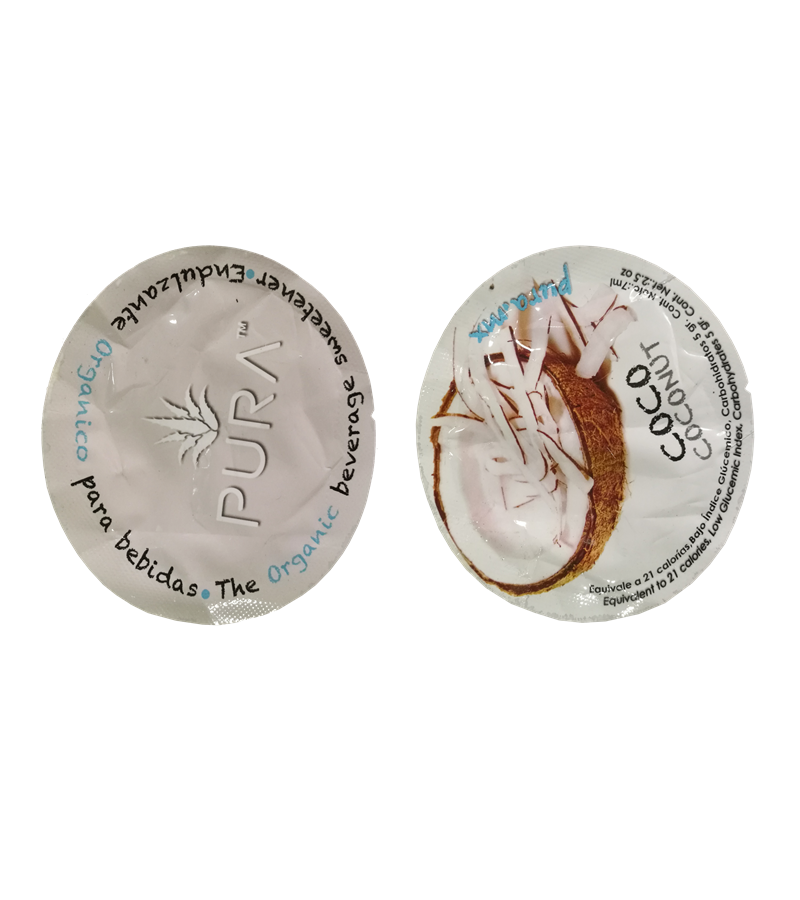

Bag sample as below:
Mask mud packing machine function and advantages:
1.whole machine use stainless steel 304 and with CE CE certificate.export all over the world.
2.Computer controller, PLC from Germany,advanced inverter, and imported power switch.
3.English screen display, you and put two language into the system,operation is simple and reliable.
4.Stepping motor subdivision technology, high precision, and the error is less than 0.5mm.
5.High-sensitivity photoelectric eye color tracing, digital sealing position for extra accuracy.
6.Unique embedded sealing, good performance, clear sealing texture, firm sealing.
7.System display can set packaging rate and bag length within specified range.
8.Rolled disc cup adjusting device can adjust packaging capacity during running the machine, reduce the lost of material and improve productivity.
Our Service
We act ourselves as a partner of our customers. Dession helps specialized customers with marketing, customized machine designs and OEM services with superior design and advanced technology. Dession owns a professional team of service technicians and engineer, salesmen and after-sales staffs which most of them have been working with Dession since we started our packaging business.
Function:To be able to weigh,fill,print date(manufacturing date/expiry date/lot number) ,make bag,seal,make special shape,cut easy-tearing notch,cut off,count(to reach the quantity to be set,the machine can give signal and stop automatically) and recycle extra-sealing film to be cut automatically
