Automatic Stick Coffee Powder Bag Packaging Machine
- HEYI
- Guangzhou
- 15 days
- 500sets/month
Automatic Stick Coffee Powder Bag Packaging Machine can be used for all kinds of powder which can't flow easily
such as milk powder,tea powder etc.
same machine you can make the stick bag type also can make the round corner bag type,especially the rounder corner bag type,very popular.we have a professional engineer team to design the matched machine for you just need your packing idea.20 years focused on packaging machine.Rigorous research and development,lean production,orderly management ,crafted work is our popurse.
Stick coffee bag packing machine,we have many sets in stock,you can come to our factory to test and check the machine.
Automatic Stick Coffee Powder Bag Packaging Machine
coffee stick packing machine is controlled by (PLC),PLC from Siemens of Germany, High precision, high measuring accuracy, With auger filling,touch-screen operation interface is very simple and convenient, stable operation, more suitable you can use stick powder filling and packaging machine continuous operation for 24 hours a day.This packaging machine USES the international standard of sealing. high strength, good appearance.Can add multigang cut according to the demand function.
Main Features
Automatic stick coffee Powder Packing Machine can finish all the work automatically: bag making—measuring--material filling—sealing—counting--date code printing etc
The computer controller has the advantages into setting the length of the bag,you can adjust the bag length by yourself from 30mm to 160mm
It can equip with date code printer for 1-3 lines according to customers' requirements.change the number by yourself,very easy to change.
The material contact parts adopt bright 304 steel, suitable for food processing, safe and clean.
It adopts temperature controller, ensure the processing temperature is stable and seal is tight.change the temp per your film thinkness.
Imported components are chosen for the main parts to ensure the processing precision.PLC and touch screen from Siemens,Relay from Omron,cylinder from Airtac etc
It chooses precision control system to adjust the machine movement, compact structure and human computer inter face design lead to convenient operation, easy adjustment and maintenance.

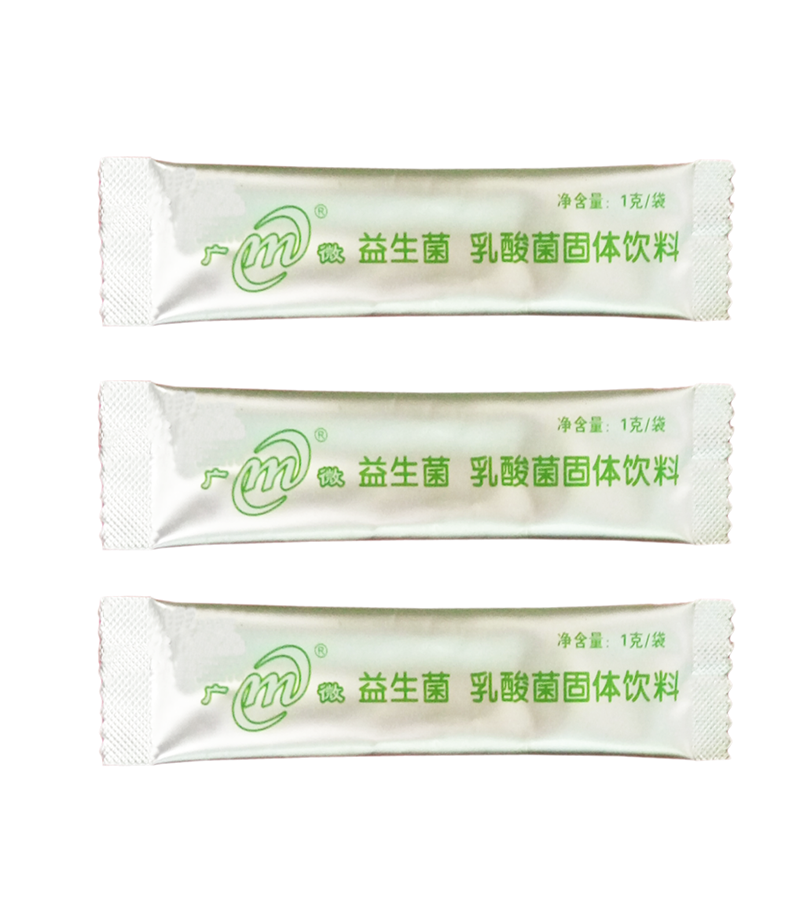

Bag sample as below:
Specifications for Automatic Stick Coffee Powder Bag Packaging Machine
Model
HY-QF50
HY-F50
Filling range
1-50ml
1-50ml
Sachet size
W：30-100mm L：30-150mm
W：30-100mm L：30-150mm
Max. film width
220mm
220mm
Sache type
3 sides / 4 sides
3 sides / 4 sides
Filling method
Auger screw
Auger screw
Control
SIEMENS PLC + TOUCH SCREEN
EASY PACK CONTROL
Capacity
30-40ppm
30-40ppm
Power
220V50-60HZ/1.0KW
220V50-60HZ/1.0KW
Air
0.3m³/min 0.6-0.8Mpa
0.3m³/min 0.6-0.8Mpa
Materials
Case and contacting parts SUS304
Case SUS202;Contacting parts SUS304
All coffee stick packaging machine will be produce per customer detailed requirement,need to know the detaikls as below:
How about the powder,what is the bag size,what is the bag type and how about the speed.Our deep experience in food packing machine filed will give you the matched packing machine.Our global experience in the food packaging machine field to support you in the development of new design and packaging formats.ready to rapidly increase prodction according to market demand.
Our company information as below:
Warranty time for stick powder packing machine
one year. If the machine was broken due to wrongly operating by users, we also provide service for repairing in warranty period. But the buyers need to supply plane ticket and food and accommodation for the technical staff economically and service fee as $100.00/day. We also can provide the new parts as users' requests.
Payment term for Heyi packaging machine
30% TT in advance,70% balanced payment before shipping.Or western union and paypal etc
