Automnatic Multi Lanes Rows Sugar Packing Machine
- HEYI
- Guangzhou
- 30days
- 100sets/month
Automnatic Multi Lanes Rows Sugar Packing Machinem,bag type can be round corner bag type or stick back sealing bag type.normally use for 1-20g small bags.with high speed and high accuancy.very fast.If your factory is not enough,this machine is the best choice for you.can save much space and labor cost.

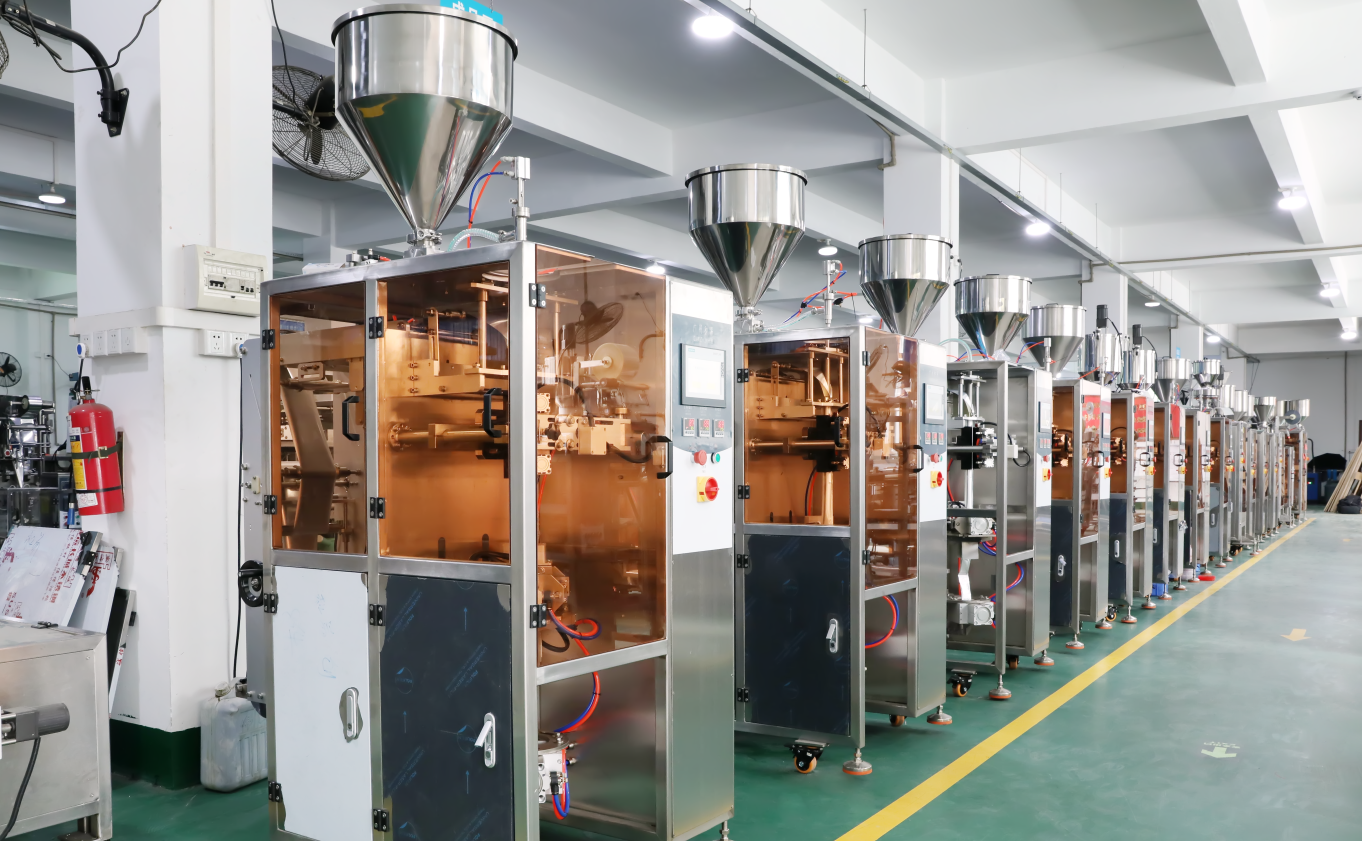

We have many sets in factory,if you have time,you can come to our factory to check this multi lanes granular sugar packing machine

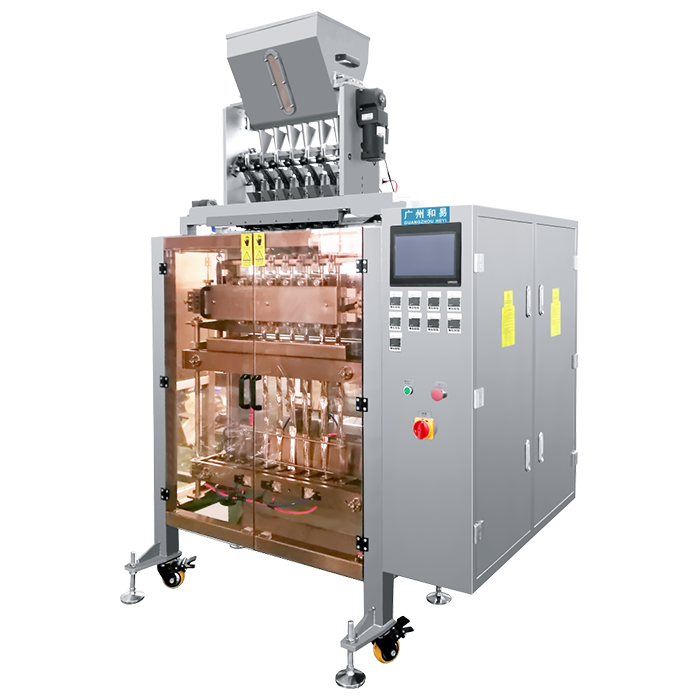

Automnatic Multi Lanes Rows Sugar Packing Machine
Application for Automnatic Multi Lanes Rows Sugar Packing Machine
Advanced sugar packing and filling machine for kinds of granule.for example:
(1) Food: sugar, salt, candy, 3in1 coffee, coffee granule, snacks, nuts, spice grain, bean, rice, seasoning grain…
(2) Chemical: detergent, desiccant granule, dryer, cleaner grain, fertilizer…
(3) Medicine: granulated grains, pill…
Main Features for multi lanes granular packing machine:
1. Multi lanes granular filling and packing machine can produce multi lanes bags at same time,very fast.
2. Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.
3. Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.
4. Stainless steel 304 contact part and the machine outer shell, high feature for liquid running environment.
5. High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.
6. PLC controller, high function and control the whole machine's work steps.
Specifications
Model | HY-YY520 | HY-YY720 |
Filling range | 1-20ml | 1-50ml |
Rows | 1by6 | 1by6, 1by8, 1by10 |
Sachet size | W：25-38mm L：30-170mm | W：25-55mm L：30-170mm |
Max. film width | 520mm | 720mm |
Sachet type | Stick with round corners | Stick with round corners |
Filling method | Piston pump / magnetic pump | Piston pump / magnetic pump |
Capacity | 120-180 ppm | 200-300 ppm |
Power Voltage and consumption | 220V50-60HZ/4.5KW | 220V50-60HZ/4.5KW |
Air pressure and consumption | 0.6m³/min 0.6-0.8Mpa | 0.6m³/min 0.6-0.8Mpa |
Dimension(L*W*H) | 1410*1700*2500mm | 1540*1700*2500mm |
Weight | 600KG | 650KG |
Packaging film materials | PE laminated film, such as PET/AL/PE, PET/PE, Nylon/PE, etc. Thickness: 0.08~0.12mm(3 or 4 layers) Inner core diameter：75mm Outer roll diameter：500mm | |
Bag sample as below:
Advantage：
1) Extremely efficient, high power, low noise, easy to maintain and has a long life span.
2) Roller heat sealing, four side sealing, high speed and multi-line packing, and with bags coming smoothly and fine, high packing efficiency.
3) Easy to adjust, precise in measurement, requires a simple procedure for pouch length adjustment without changing the mould. Functions can be regulated for longitudinal sealing,
transverse sealing, filling, notch cutting, longitudinal cutting, fracture line making and transverse
cutting with the advanced technology for our man-machine interface.
4) Famous servo motor driver is adopted, high performance PLC pouch length can be setup directly at the touch screen, at the same time longitudinal sealing and transverse sealing be able
to auto in phase tracking. It saves more time and material compare with mechanical
transmission and with bag pulling smoother and even easier to adjust.
