Full Automatic Small Plastic Bags 4 Sides Sealing Pill Bag Packing Machine
- HEYI
- Guangzhou
- 15 days
- 500sets/month
Full Automatic Small Plastic Bags 4 Sides Sealing Pill Bag Packing Machine,can count and fill the tablets automatically.Widely used in food, hardware, chemical and medicine industry. Suitable for packing products such as pills, nails, nuts, bolts, candy, chocolate beans, small tools, plastic products, small hardwares etc.
The machine can do whole process automaticlly.we are a factory,will do the machine per your all requirements
Full Automatic Small Plastic Bags 4 Sides Sealing Pill Bag Packing Machine
Application of Full Automatic Small Plastic Bags 4 Sides Sealing Pill Bag Packing Machine
Applicable for food, health care, pharmaceutical industry in the form of tablets, pellets, granules, ovals and other compressed candy, soft capsules, Baoji pills, tablets and other products, can be packaged in single or multiple pieces.
Specifications of Full Automatic Small Plastic Bags 4 Sides Sealing Pill Bag Packing Machine
Model | HY-PJ50 | HY-PB50 |
Filling range | 1-10pcs | 1-10pcs |
Sachet size | W：30-100mm L：30-150mm | W：30-100mm L：30-150mm |
Max. film width | 220mm | 220mm |
Sachet type | 3 sides / 4 sides | Pillow stick |
Filling method | Counting plate | Counting plate |
Control | Easy Pack | Easy Pack |
Capacity | 30-40ppm | 30-40ppm |
Power | 220V50-60HZ/1.0KW | 220V50-60HZ/1.0KW |
Air | 0.3m³/min 0.6-0.8Mpa | 0.3m³/min 0.6-0.8Mpa |
Materials | Case and contacting parts SUS304 | Case SUS202;Contacting parts SUS304 |
Dimension(L*W*H) | 670*850*1600mm | 670*850*1700mm |
Weight | 200KG | 200KG |

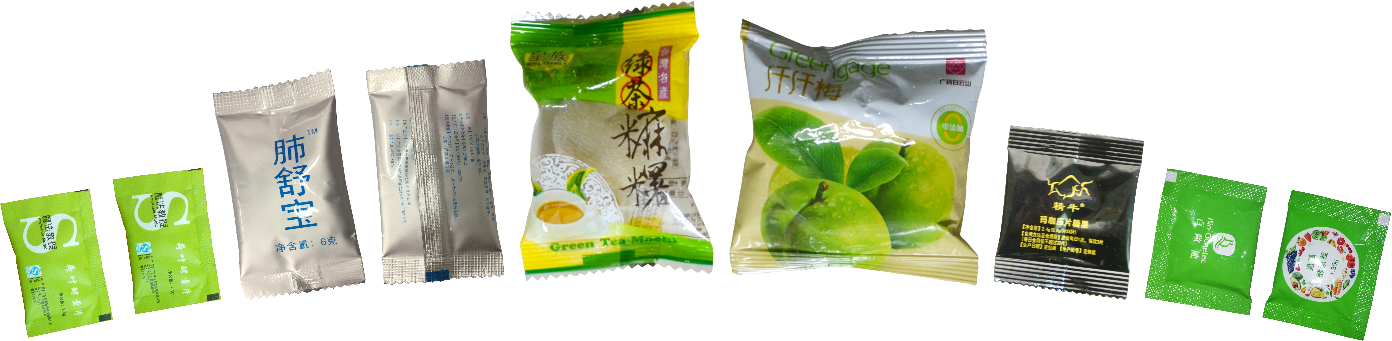

Bag sample as below:
Features of tablet counting and packaging machine:
1. Imported PLC computer control system from Germany Siemens, with human-machine interface; touch screen is simple and direct- viewing in operation.very easy to operate.
2. Precise positioning with step-motor film transporting system; excellent complete machine performance and nice packing.
3. automatic warn protection function.without film or any fault happened,will stop the machine and warn.
4. Supported with metric device, the machine will automatically complete all packaging processes from measuring, feeding, filling, bag making and sealing.
5. High precision data-type weighing sensor work with one counting device realizes precise weighing.
6,The contact material parts all SS304,no any contaminated material.
7,Show packaging speed and number of packages,adjustable packing speed.
HEYI factory information as below:
FAQ:
1,Does it easy to operate?
Yes,every machine will be adjusted well before shipping,We offer operate manual and video too,according this,you can operate it easily.
2,What’s your payment term?
30% deposit and balance paid before delivery.
3,How about the transport?
By air,by sea or by rail is available.If this is your first time to do import business,and don’t know about ship much,just give us your address information,we will check all the details of the freight for your reference.
4,Are you factory or trading company?
We are manufacture owned professional R&D team,over 21 years experiences.
5,How to repair or change when some parts are broken?
We will make fixed repair video and send new part if needed (freely in the warranty period).For some special problem,we will help you to fix it through email,skpye or engineer oversea service(customer need to pay round tickets and accomdation)
