Full Automatic Vertical 5g KFC Paper Bag Sachet Sugar Packing Machine
- HEYI
- Guangzhou
- 15 days
- 500sets/month
Application
It is suitable for automatic packaging of liquid particles with good fluidity in food, health care and pharmaceutical industries, such as instant coffee, solid beverage, fruit enzyme powder, Baoji pills, white sugar, granules, Chinese medicine granules, etc.
Full Automatic Vertical 5g KFC Paper Bag Sachet sugar Packing Machine
Specifications for Full Automatic Vertical 5g KFC Paper Bag Sachet sugar Packing Machine
Model | HY-QK50 | HY-K50 |
Filling range | 1-50ml | 1-50ml |
Sachet size | W：30-100mm L：30-150mm | W：30-100mm L：30-150mm |
Max. film width | 220mm | 220mm |
Sachet type | 3 sides / 4 sides | 3 sides / 4 sides |
Filling method | Volumetric cups | Volumetric cups |
Control | SIEMENS PLC + TOUCH SCREEEN | EASY PACK control |
Capacity | 30-60ppm | 30-130ppm |
Power | 220V50-60HZ/1.0KW | 220V50-60HZ/1.0KW |
Air | 0.3m³/min 0.6-0.8Mpa | 0.3m³/min 0.6-0.8Mpa |
Materials | Case and contacting parts SUS304 | Case SUS202;Contacting parts SUS304 |
Dimension(L*W*H) | 880*700*1750mm | 670*850*1655mm |
Weight | 250KG | 200KG |
Description:
1. Sealing type: Three side sealing bag type or four-side sealing bag type packing method.
2. Operation:with big touch screen and PLC control system, packing running data and adjustment are directly displayed on the display. The user can directly operate it on the displayer.
3. Founction: making bag, metering, filling, sealing, cutting, counting and printing batch number.
4. packing machine material: whole sets machine including the cabinet with 304 stainless steel
5. Filling method: measurement volumetric cups,one set with 4 cups.
6. This machine can finish measuring, pulling, feeding, forming, cutting automatically.
7. Chinese-English or you can chose two lanuage into the system, operating screen display, easy operation and maintenance.
8. Mitsubishi plc control system insure steady working conditions, and available to adjust any parameter without stopping the machine.
9. Adopt step motor to pull film, more accurate.
10. Independent temperature control system, precision±1 degree.
11. Independent control of horizontal / longitudinal temperature, to ensure a good fit of various kinds of complex film.
12. Automatic alarm protects system, to save the waste into minimum limited.

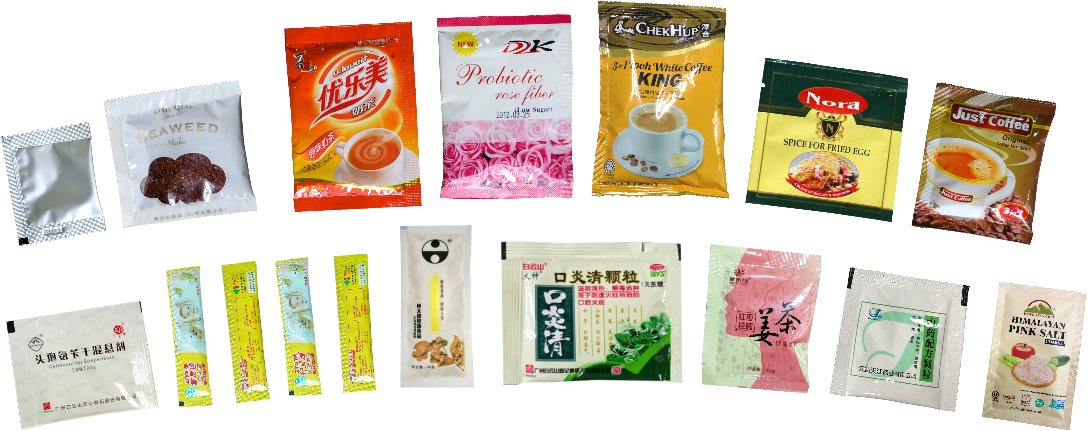

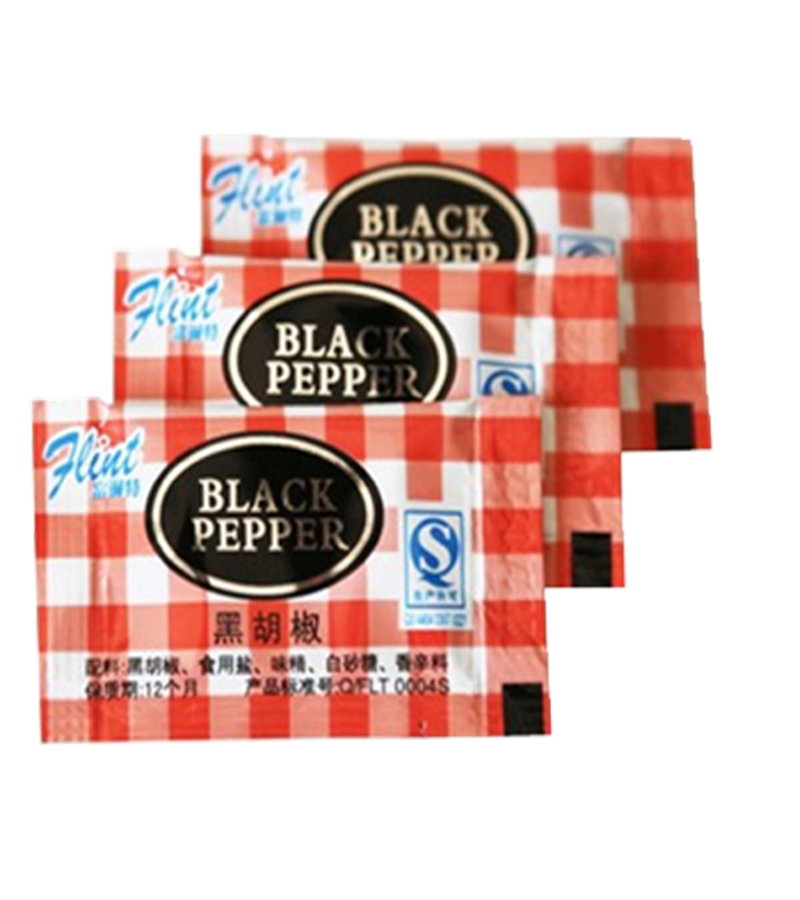

Bag sample:
Kindly reminder:
You can let me know more details then I can introduce the matched packing machine for you.
1. what kind of product do you want to pack?
2. how about the Bag width,bag length
3. how about the Bag shape
4. Packing film material
5. Expected capacity
6. other requirements
Guangzhou Heyi pack Company is a professional packing machine producer in Guangzhou over 20 years.. We design, manufacture and sell our products as well as provide after-sales service.
Our vertical automatic packing machines are widely used in packing slice, grain, liquid and powder and materials such as foodstuff, medicine and chemical products.
In future, we will continue developing new products to meet different customers’ requirements. We are confident that you will benefit from our high quality products and excellent services. Looking forward to establishing long-term business relationships with customers from all around the world and making progress together, we welcome your suggestion and patronage.
