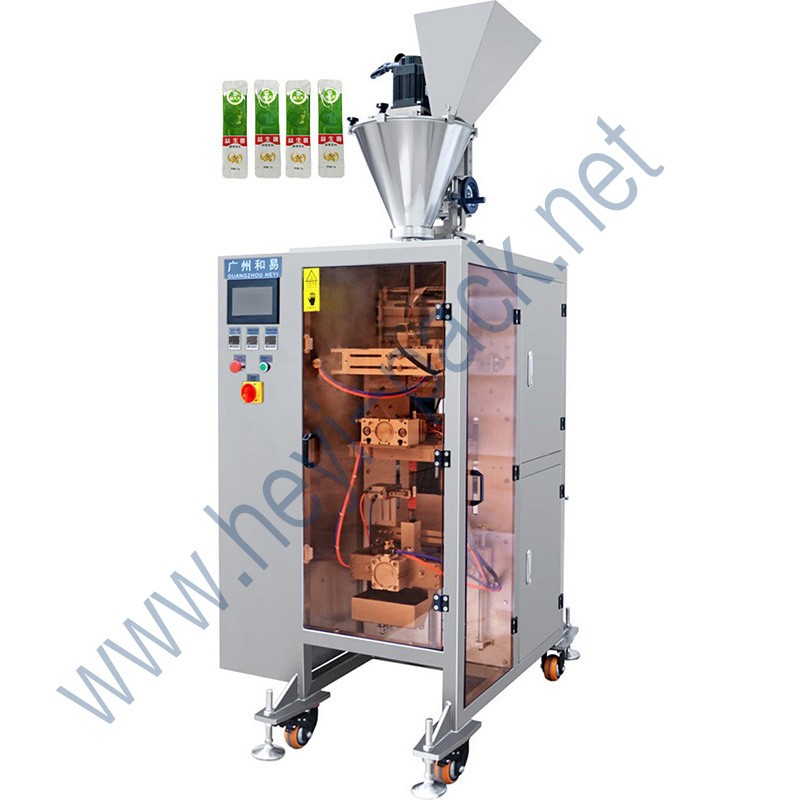

High accuracy small sachet stick probiotics powder packing machine
- HEYI
- Guangzhou
- 15 days
- 500sets/month
High accuracy small sachet stick probiotics powder packing machine,powder packing machine to pack probiotics powder.stick back side sealing or three sides sealing bag type.
Normally pack 5g or 10g,small sachet.very nice bag type.you also can use the same packing machine to pack many different powder,like milk powder,tea powder etc.
High accuracy small sachet stick probiotics powder packing machine/Sachet / Stick Milk Coffee Powder Packing Machine
High accuracy small sachet stick probiotics powder packing machine:
This stick powder packaging machine is widely used for food,phamacy eutical,and chemical products in mesh size range from 30mm to 100mm bag width and 30mm to 160mm bag length,same machine can be used for many different powder,such as milk powder,soya powder,cosmetic powder,slimming tea,medical powder.etc.
Machine features
1) Be able to weight, bag-making, filling, sealing, cutting,lot number automatically.
2) It has color control system which can get the complete trade mark design
(photoelectricity control system).
3) The machine fix stepper motor controller,its is precise,needless to adjust other parts.
4) Intelligent temperature control by temperature controller to make heat balance better.use bilingual display screen control system and stainless steel cabinet.
5) Fine packaging performance ,low noise ,sealing texture and strong sealing performance.
6) With safe plastic box on rotating blade to avoid hurting operator's hands.
7) Need to change new temperature controller,blade& pressing mode only after 3 years continuous operation,2 shifts a day and other parts is still good and safe freely).
8)With printer (to be able to code the date and batch number) and rotating blade(be able to adjust the length of bag and shape of bag notch edge packing.
Specifications
Model | HY-YF50 |
Filling range | 1-50g |
Sachet size | W：25-100mm L：30-180mm |
Max.film width | 220mm |
Sachet type | Rounded back seal, easy to tear, |
Filling method | Auger screw |
Capacity | 20-35 ppm |
Power Voltage and consumption | 220V50-60HZ/5.5KW |
Air pressure and consumption | 0.3m³/min 0.6-0.8Mpa |
Dimension(L*W*H) | 930*1500*2400mm |
Weight | 400KG |
Model | HY-YF50 |
Packaging film materials | PE laminated film, such as PET/AL/PE, PET/PE, Nylon/PE, etc. Thickness: 0.08~0.12mm(3 or 4 layers) Inner core diameter：75mm Outer roll diameter：500mm |
main component：
PLC | Siemens | smart200 |
Touch screen | Siemens | smart10001E |
temperature control | Omron | E5CWL-QITC |
Relay | Omron | MY2N-GS |
Servo motor 1.5KW | Panasonic | A6 series |
Servo motor 400W | Panasonic | A6 series |
Switch | Schneider | ABL 2REM24065H |
photoelectricity | Sunx | LX-101 |
Air cylinder | AirTAC | |
button | Schneider | 2B2-BS54C |
Start button | Schneider | LAY50-22D-11D |
material | 304SUS | Whole set machine |
Our machine in customer's factory:
