Irregular shape chocolate liquid ice lolly packing machine
- HEYI
- Guangzhou
- 15 days
- 500sets/month
Automatic Irregular Shaped Sachet Packaging Machine, Finger Millet Vertical Packing Machine ,making bags,makes shape,filling liquid,weighing liquid,sealing bags and cutting bags automatically,Add one automatical loader and finished no need work do anything.
Bag type is your design,we will do the machine per you all details.
Irregular shape chocolate liquid ice lolly packing machine
The machine can automatically pack some different liqud,like cream and paste materials in chemical, medical and food industry, tomato paste, energy gel,juice,chocolate liquid,ice lolly,salad sauce,paste etc.
Technical Specifications:
Model Number | HY-IY320 |
Filling Range | 1-20ml/10-50ml |
Sachet size | W:30-130mm L:30-170mm |
Max. film width | 320mm |
Sachet type | Irregular shape sachet |
Filling method | Pneumatic pump / magnetic pump |
Capacity | 25-40 ppm |
Power Voltage and consumption | 220V50-60HZ/4.5KW |
Air pressure and consumption | 0.4m³/min 0.6-0.8Mpa |
Dimension(L*W*H) | 920*1291*2173mm |
Weight | 450KG |
Packaging film materials | PE laminated film, such as PET/AL/PE, PET/PE, Nylon/PE, etc. Thickness: 0.08~0.12mm(3 or 4 layers) Inner core diameter：75mm Outer roll diameter：300mm-500mm |
Features for irregular shape bag ice lolly,juice packing machine
1.Full Pneumatic control packing machine for filling and sealing the bags, easy for operation and maintenance.safety.
2.With high quality components:Siemens or Omron PLC, Siemens or Omron Touch Screen, Omron Temperature Control, Omron Solid Relay, Schneider power control, Schneider Servo Motor, AirTac Cylinders, etc.
3,With Servo motor bag pulling, more steady and accurate than step motor.
4.Whole machine with 6.0mm 304SUS frame, covered with 1.5-2.0mm 304SUS sheets.
5.With accurate eye mark sensor to control bag length , if lack of film or any mistake occurred,the machine will give a warm and automatic stop.
6.With intelligent temperature controller to control each sealer accurately and evenly. Horizonal and vertical temp is separate.
7.With auto feeding system to save hands.One woman can take care 5 sets packing machine working at the same time.
Function:
Automatic feeding, starting from film roll, forming, filling, sealing, coding, etc.full function is automatic.
Packaging Materials:
All kinds of laminated films, PET/PE, PET/AL/PE, PET/NYLONG/PE, Paper/PE, etc
Main components:
- Siemens PLC
- Siemens TOUCH SCREEN
- Siemens Temperature control
- Siemens Relay
- Schneider power control
- AIRTAC Cylinder
- Machine production time: 30 days.
- Payment: TT, 30% deposit and 70% balanced payment before shipping.
- Two years warranty and life long service

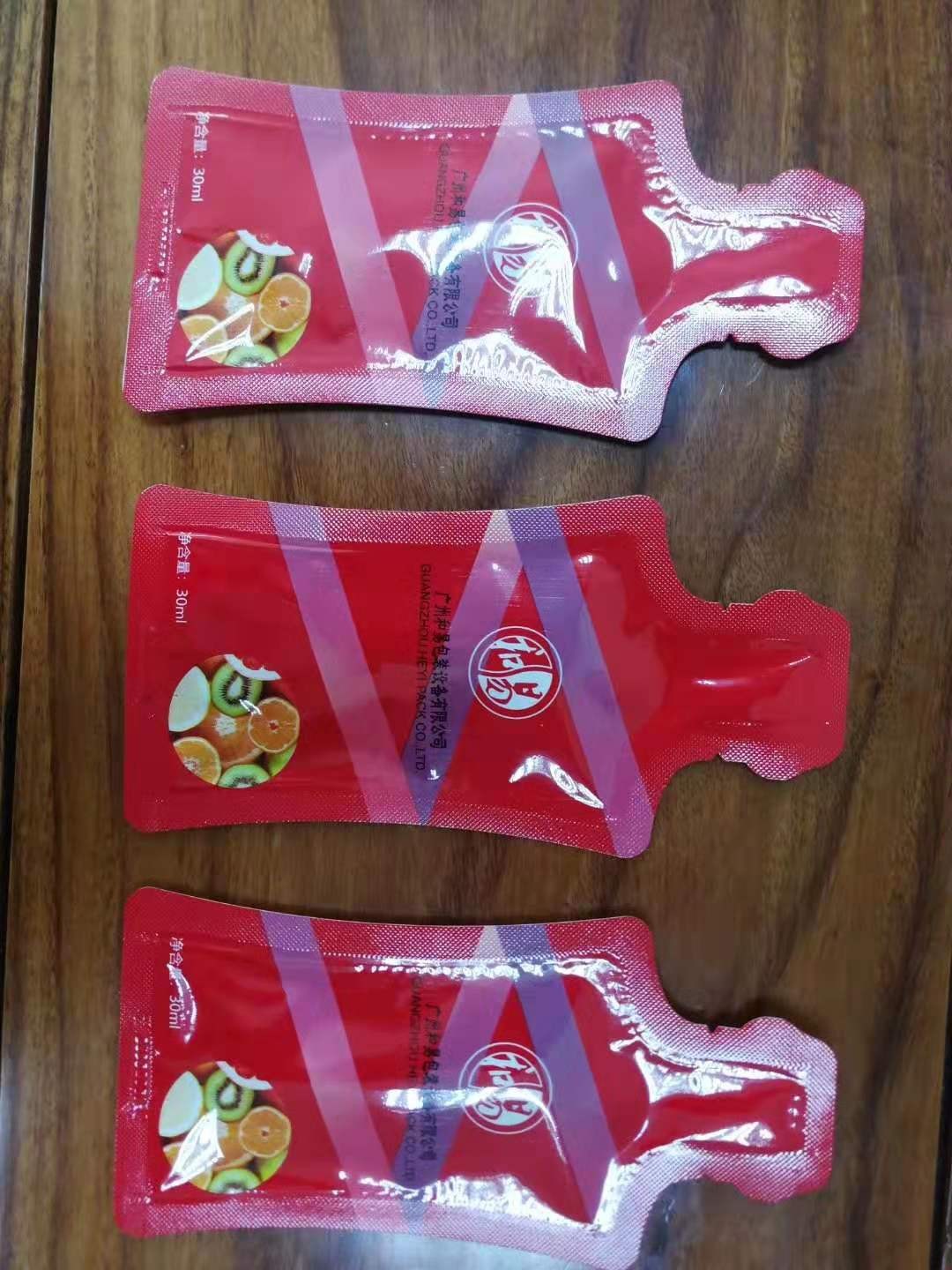

This irregular shaped bag is very popular,all bag shape are customerized.they are very popular in this market.irregular shape sachet liquid packing machine normally used for some energy gel,juice,ice lolly,sauce,honey,ketchup,sometime,one time one bag,You can make some small bag for your product as free sample to your customer.
Contact me to get more details and some other customer's creative bag design.
