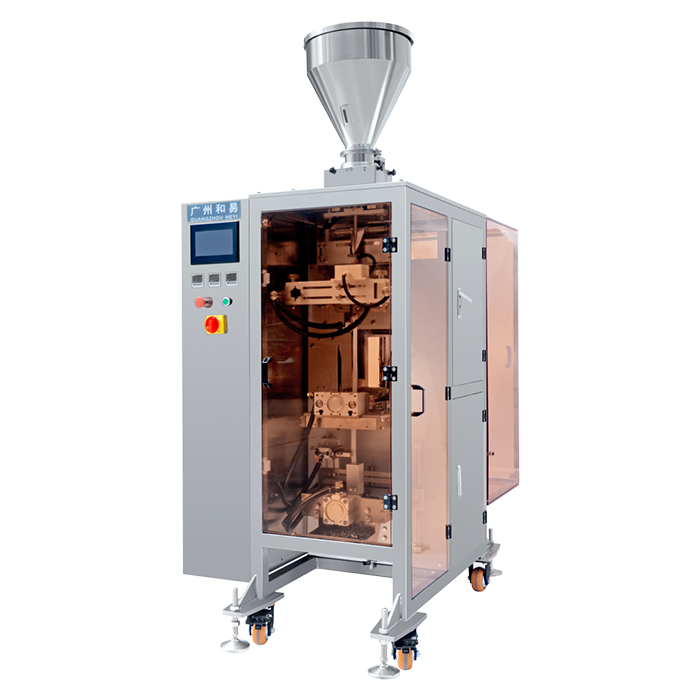

Irregular Shaped Liquid Juice Energy Drink Packing Machine
- HEYI
- Guangzhou
- 15 days
- 100sets/month
Irregular Shaped Liquid Juice Energy Drink Packing Machine,this machine is mainly used for ketchup/tomato sauce, chili sauce, hotpot condiment, salad,cream, cooking oil, honey, yogurt, fruit juice, wine, vinegar, shampoo, hair conditioner, facial cream, medical and chemical liquid/paste quantitative packaging.or some liquid drinks products.
Very popular in this market now.if you need more details,contact with us.
Irregular Shaped Liquid Juice Energy Drink Packing Machine
Application:
It is suitable for automatic packaging of liquid paste products in daily chemical, food, health care and pharmaceutical industries, such as: mouthwash; energy drink, energy jelly, energy supplement, etc.; syrup, red ginseng drink, grain health cream, etc.
Mechanical characteristics and product characteristics:
1. Rounded shaped sachet, the size of the nozzle can be designed to facilitate the extrusion of the liquid to prevent the liquid from spilling out;
2. Double metering head design, which can meet the automatic metering and packaging of viscous sauces and water-based products;
3. The punching die is made of HKS-9 material. After six processing techniques, it has high durability and long service life.
4. Add a disinfection lamp at the film pulling film to perform preliminary disinfection of the film;
5. Auxiliary equipment: feeding machine + coding machine + finished product conveyor + constant temperature mixing barrel
Specifications Irregular Shaped Liquid Juice Energy Drink Packing Machine
Model | HY-YY50 |
Filling range | 1-60ml |
Sachet size | W：25-100mm L：30-180mm |
Max. film width | 220mm |
Sachet type | Rounded back seal with easy tearing, longitudinal seal twisted edge seal |
Filling range | Pneumatic pump / magnetic pump |
Capacity | 20-35 ppm |
Power Voltage and consumption | 220V50-60HZ/5.5KW |
Air pressure and consumption | 0.3m³/min 0.6-0.8Mpa |
Dimension(L*W*H) | 930*1500*2400mm |
Weight | 400KG |
Packaging materials | PE laminated film, such as PET/AL/PE, PET/PE, Nylon/PE, etc. Thickness: 0.08~0.12mm(3 or 4 layers) Inner core diameter：75mm Outer roll diameter：300mm-500mm |
FAQ(Frequently asked questions):
1,Q:Are you a trade company or a manufacturer?
A:We are manufacturer with more than 20 years experiences.we have our own engineers teams,just give us your packing idea,we do the other things for you.
2,Q:How long you need to produce the machine after we give the deposite?
A:for small machine,normally 15 days,for big machine,30days.
3,Q:How about the payment term?
A:30% TT in advance,balanced payment before shipping.L/C,trade assuance order,Western Union.
4,Q:If I want to pack one product,how to chose the suitable machine to pack them?
A:We have more than 20 years experiences,so just need you to tell us your packing idea:what kind of product do you want to pack?how many grams for each bag?what is your bag size?what is your bag type.
5,Q:How about the warranty,if the machine have any problem,what should I do?
A:we have one year warranty for our machine.If the machine have any problem.you can send us the video,our professional engineer will check.and give you prompt feedback.We will tell you and send you the video to teach you how to solve this problem,if it is the problems of our accessories,we will send a new one to you within warranty.
6,Q:what is the advantages compared with other company?
A:1)We are factory,so we can give you the prompt feedback.
2)Excellent technical support
3)Best before and after sale service
4)More than 20 years experiences
