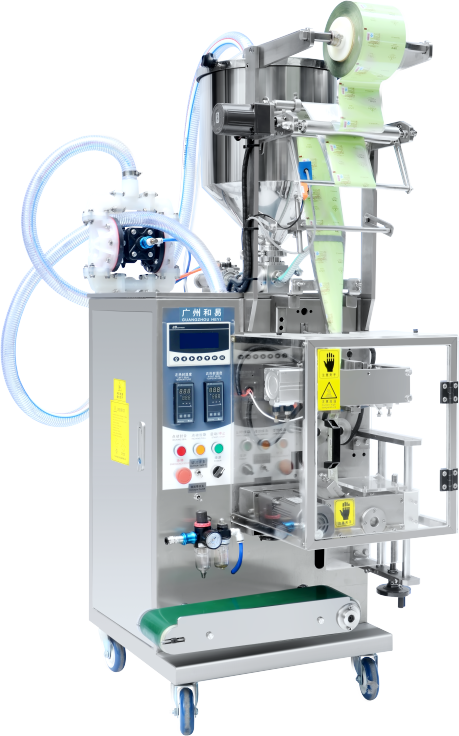

KFC Small Bag Ketchup Packing Machine
- HEYI
- Guangzhou
- 15 days
- 500sets/month
Our automatic small sachet bag ketchup packaging machines are designed and manufactured entirely by our engineer team, therefore we are able to produce customised machines.just give us your packing idea,we produce the matched packing machine for you.
Every year we invest in research and development in the field of our these filling and packaging machine, so that our automatic vertical packaging machines can become even more trustworthy and efficient,we also have a strict quality control.promise each machine with high quality before shipping.
we are producing 4 side heat-sealed bags, 3 side sealing and shaped sachets, stick-packs
KFC Small Bag Ketchup Packing Machine
Scope of application
This small sachet ketchup filling and packing machine is widely applied for food,pharmaceutical,and chemical products ,such as paste /,sauce/food/medicine and other material etc...
Applicable packing film
Paper/PE, PT/PE, PET/AL/PE, BOPP/PE, Tea filter paper and other compound materials can be heat sealed.normally with 3 layers film:PET+Al+PE or 4 layers film:PET+AL+NYLON+PE.
Machine features
1) Be able to weight, bag-making, filling, sealing, cutting,lot number automatically.
2 ) It has color control system which can get the complete trade mark design
(photoelectricity control system).
3) The machine fix stepper motor controller,its advantage is precise,needless to adjust other parts.
4) Intelligent temperature control by temperature controller to make heat balance better.use bilingual display screen control system and stainless steel cabinet.
5) Fine packaging performance ,low noise ,clear sealing texture and strong sealing performance.
6) This liquid packaging machinbe with safe plastic box on rotating blade to avoid hurting operator's hands.
7) Need to change new temperature controller,blade& pressing mode only after 3 years continuous operation,2 shifts a day and other parts is still good and safe freely).
8) With printer (to be able to code the date and batch number) and rotating blade(be able to adjust the length of bag and shape of bag notch edge packing.
9),This ketchup packing machine normally pack small sachet,2g to 10g is the most popular design.with 3 side heat sealed.Like the ketchup bags in KFC
KFC Small Bag Ketchup Packing Machine description
Our professional engineers have in store for our clients an excellent product Tomato Ketchup Packing Machine that is widely appreciated in the market for its reliability, performance and sturdiness. These are available in the market at the industry leading prices.as we are factory with long history and specialty.
Model | HY-QY50 | HY-Y50 |
Filling range | 1-50ml | 1-50ml |
Sachet size | W：30-100mm L：30-150mm | W：30-100mm L：30-150mm |
Max. film width | 220mm | 220mm |
Sachet type | 3 sides / 4 sides | 3 sides / 4 sides |
Filling method | Piston pump / magnetic pump | Piston pump / magnetic pump |
Control | SIEMENS PLC + TOUCH SCREEN | EASY PACK CONTROL |
Capacity | 30-50ppm | 30-50ppm |
Power | 220V50-60HZ/1.0KW | 220V50-60HZ/1.0KW |
Air | 0.3m³/min 0.6-0.8Mpa | 0.3m³/min 0.6-0.8Mpa |
Materials | Case and contacting parts SUS304 | Case SUS202;Contacting parts SUS304 |
Dimension(L*W*H) | 880*700*1750mm | 670*850*1655mm |
Weight | 250KG | 200KG |
Bag sample as below:
Our customer as below:
FAQ and answers for KFC Small Bag Ketchup Packing Machine
l , Installation/Operation/ Service/ Maintenance Manual: In English
l Machine Drawing / Layout: Detail in AutoCAD format (as for actual workshop)
l Installation: if need engineer to install the machine for you in your factory ,without cost. Commissioning fee plus round flight tickets, hotel and dinner fee are all at buyer’s account.
l Training: Training to the local operator to be carried out by the supplier at the time of installation/ commissioning/ trial run at factory.
l Warranty: One year from the date of completion of the commissioning
l Pre-shipment Inspection:
u Supplier should trial run whole line at supplier's factory before shipment;
u Supplier has to run the machine at least 1hour for each product;
u All raw materials for that trial run to be arranged by supplier at their cost.
l Quanlity Guarantee: Period: one year. we shall send enough spare part of easy damaged for changing along with machine.
l IF components were damaged in guarantee period, we shall send the spare part free of charge for changing, if the components were damaged beyond guarantee period, we shall supply the spare part at factory cost price. The related courier fees will be responsible to the buyer.
l We provide the lifelong maintenance service. (Commissioning fee plus flight tickets, hotel and dinner fee are all at buyer’s account.)
l 24 hours hotline for any question.
