Multi Function Small Pouch Sachets Bag Milk Powder Packing Machine
- HEYI
- Guangzhou
- 15 days
- 500sets/month
Multi Function Small Pouch Sachets Bag Milk Powder Packing Machine,mainly used for some small sachets bags,like milk powder bags,tea powder bags,pepper powder bags etc.full automatic,no need workers.
with 20 years packing machine experience,we have many different packing method for your different situation.just give me your packing idea,we give the drawing for you.
This stick powder packaging machine with high speed,high accuracy,cost-effective,your best choice
Multi Function Small Pouch Sachets Bag Milk Powder Packing Machine
Full Features for Multi Function Small Pouch Sachets Bag Milk Powder Packing Machine:
1.This powder packaging machine can automatically complete auger filler measuring wth high accuracy--coding(optional)--bag making--filling--exhaust(optional)--sealing--cutting etc
2.Computer/PLC control system(from Siemens of Germany),photoelectric tracking,high reliability and intellectualized degree.
3.Equipped with fault display system,easy to operate and maintain
4.You can cut the bags one by one or linked bags ,easy tear notch device accoring to clients' request.
5.whole set machine including the part contact with product,machine body and cabnet are mde by stainless steel 304
6.Ribbon Date Printer one line,two line or 3 line accoring to clients' request.change the number or letters by yourself if change the date.
Specifications(Multi Function Small Pouch Sachets Bag Milk Powder Packing Machine)
Model | HY-QF50 | HY-F50 |
Filling range | 1-50ml | 1-50ml |
Sachet size | W：30-100mm L：30-150mm | W：30-100mm L：30-150mm |
Max. film width | 220mm | 220mm |
Sache type | 3 sides / 4 sides | 3 sides / 4 sides |
Filling method | Auger screw | Auger screw |
Control | SIEMENS PLC + TOUCH SCREEN | EASY PACK CONTROL |
Capacity | 30-40ppm | 30-40ppm |
Power | 220V50-60HZ/1.0KW | 220V50-60HZ/1.0KW |
Air | 0.3m³/min 0.6-0.8Mpa | 0.3m³/min 0.6-0.8Mpa |
Materials | Case and contacting parts SUS304 | Case SUS202;Contacting parts SUS304 |
Dimension(L*W*H) | 880*700*1750mm | 670*850*1655mm |
Weight | 250KG | 200KG |
bag sample:
Our service for our all packing machine:
Before-sale service:
Tell us your packing idea,what product need to pack,how about the wieght,bag size and bag type.
Any required custom-made machine can be designed and manufactured for convenient operation and reasonable cost
Installation:
1.with the machine shipping,We provide videos and instruction manual to show the process of installation.
2.We provide training for installation for free in our factory.
3.We can send technician to buyer's factory to install the machine,just need the Visa fee,round-tickets and accommodation fee.
After Sales Service:
1. This powder filling and packing machine will have one year warranty . During the warranty year if any of the parts broken (Mark:not by man-made),We will provide free parts to replace the new one to you.The warranty will begin after the machine send out.
2. Free lifetime technique support.
3.After the warranty period, the spare parts for replacement are offered based on certain charge.
Our compang information:

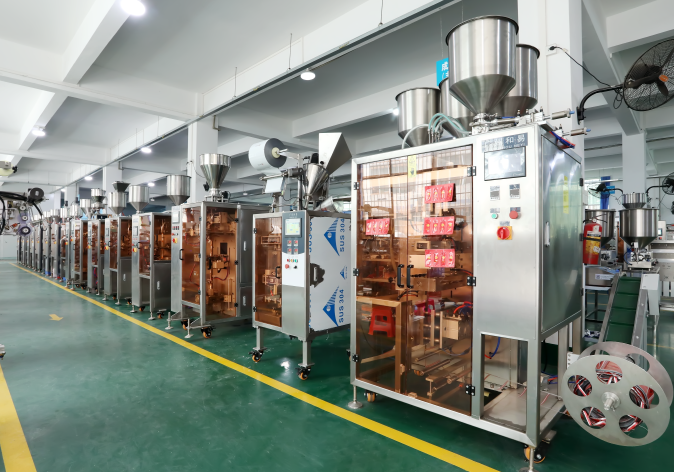

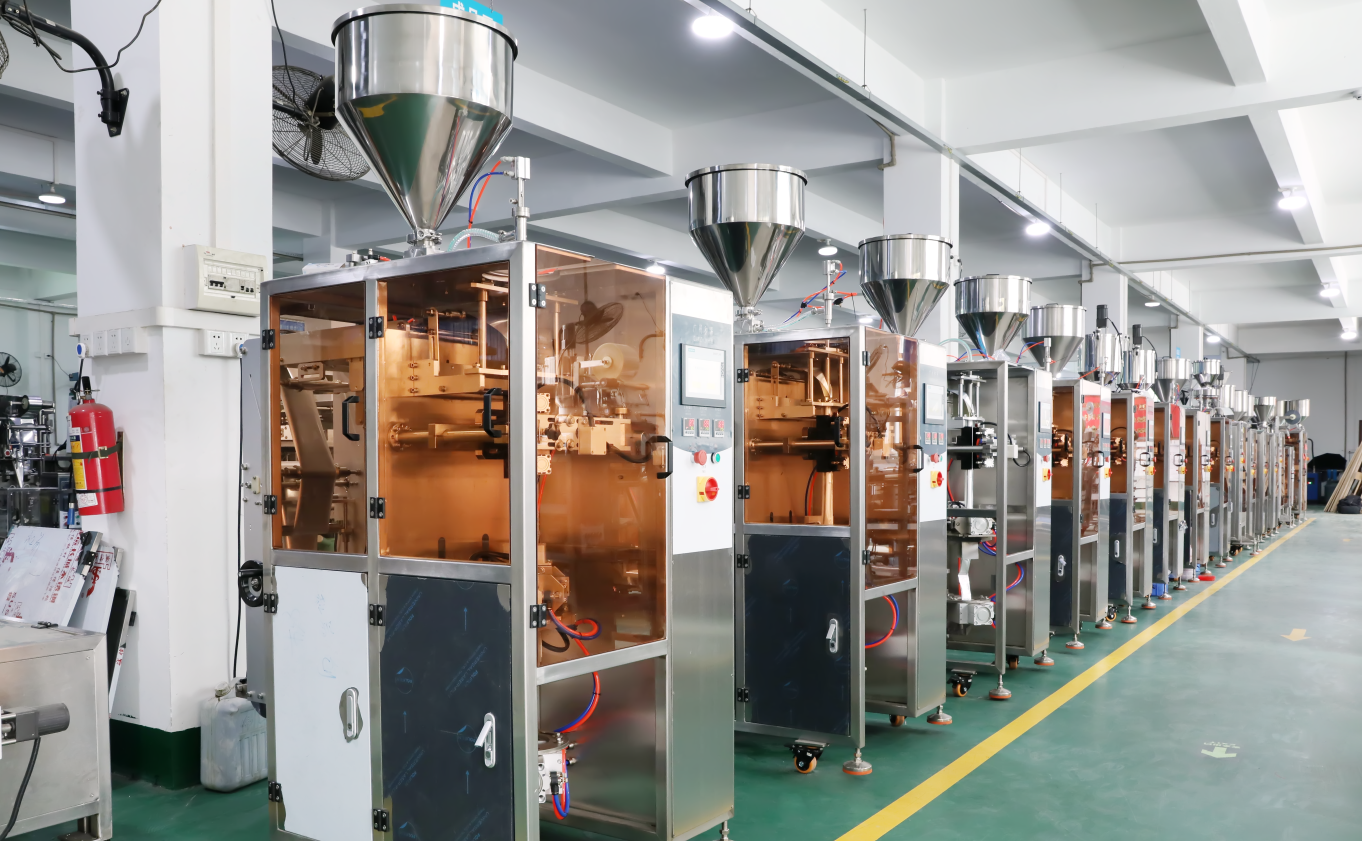

Many different granular packing machine,powder packaging machine,liquid packing machine are showed in our factory.if you have time,our engineer can explain easy machine machine for you,you also can operate our machine by yourself.
Our company information as below:
Established in year 1999, located in Baiyun Distrcit, Guangzhou HEYI PACK Co., Ltd. is specialized in designing, manufacturing and sales of automatic form-fill-seal sachet packaging machines, widely used in chemical, pharmaceutical, food, health products, cosmetics and other processing and production industries. With experienced hardware and software engineers, we are capable of both ODM & OEM production.
Main products: liquid packaging machine, granule packaging machine, powder packaging machine, tablets packaging machine, multi-material packaging machine, multi-lane packaging machine etc.,
We have many different packing machine in our factory.You can come to our factory and test our machine ,our engineers cna explain each machine for you.Granular packing machine,powder packing machine,liquid packing machine ,single packaging machine,multi lanes packaging machine.You can find the right one for your situation.
