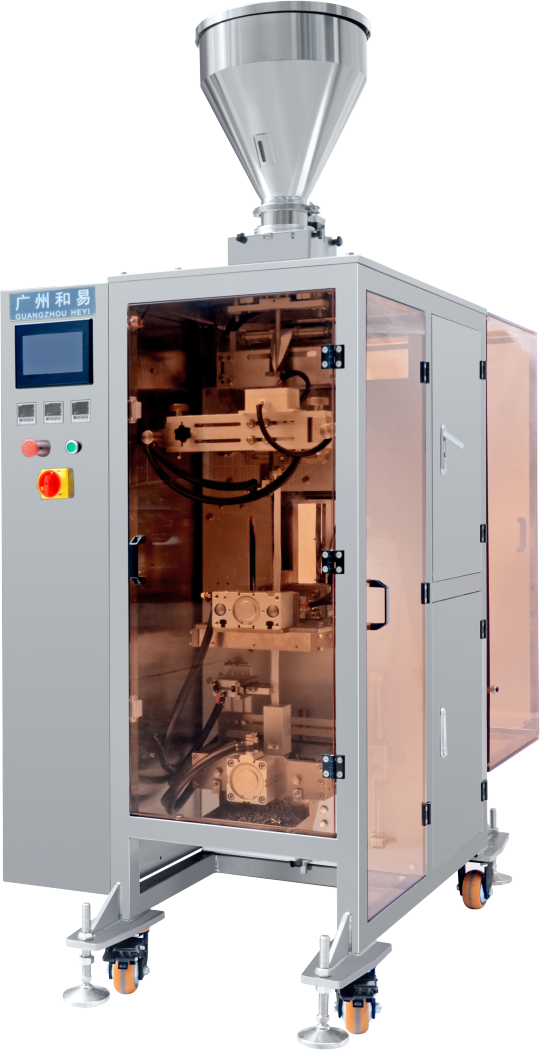

New Design Round Corner Bag Type Stick Sugar Packing Machine
- HEYI
- Guangzhou
- 15 days
- 500sets/month
New Design Round Corner Bag Type Stick Sugar Packing Machine,
1. Adopt German Siemens PLC controller, color touch screen operation; Taiwan AIRTAC cylinder; France Schneider switching power supply;
2. Servo heat sealing bag, vertical sealing without stickers, exquisite bag type;
3. Material: The contact part of the box and material is made of SUS304 stainless steel, which is in line with GMP production.
4. The heat-generating parts and moving parts are hidden in the protective cover, which is safe and reliable.
5. The equipment is equipped with casters for easy handling and movement.
New Design Round Corner Bag Type Stick Sugar Packing Machine
Specifications New Design Round Corner Bag Type Stick Sugar Packing Machine
Model | HY-YBK50 |
Filling range | 1-60ml |
Sachet size | W：25-100mm L：30-180mm |
Max. film width | 220mm |
Sachet type | Round corner sitck |
Filling method | Volumetric cups |
Capacity | 20-35ppm |
Power Voltage and consumption | 220V50-60HZ/3.0KW |
Air pressure and consumption | 0.3m³/min 0.6-0.8Mpa |
Dimension(L*W*H) | 830*800*1800mm |
Weight | 300KG |
Packaging film materials | PE laminated film, such as PET/AL/PE, PET/PE, Nylon/PE, etc. Thickness: 0.08~0.12mm(3 or 4 layers) Inner core diameter：75mm Outer roll diameter：300mm |
Bag sample:
Features for New Design Round Corner Bag Type Stick Sugar Packing Machine
1. Adopt German Siemens PLC controller, color touch screen operation; Taiwan AIRTAC cylinder; France Schneider switching power supply;
2. Servo heat sealing bag, vertical sealing without stickers, exquisite bag type;
3. Material: The contact part of the box and material is made of SUS304 stainless steel, which is in line with GMP production.
4. The heat-generating parts and moving parts are hidden in the protective cover, which is safe and reliable.
5. The equipment is equipped with casters for easy handling and movement.
Payment and shipment
1)Payment: 30%TT in advance, the balance paid before delivery
2)Warranty:1year(Attention: Machine's warranty range don't
include damageable Spare Parts like heating tube, thermocouple, temperature controller ,photocell and blade)
3)Package: plastic film +wooden case with metal frame
This round corner bag type of Vertical Form Fill and Seal machinery is what is known as a "Stick" packer. Typically stick packs refers to long narrow packages that can be made for 1 - 10 at a time from a single web where the the machine slits the web prior to forming. Stick packs will also have a fin seal or alternatively an envelope seal on the side. But the fact is that a stick packer VFFS machine need not necessarily produce only a narrow package, but can produce most any sized bags within the limits of the web width handling capabilities of the particular machine.
