Round Corner Bag Liquid Beverage Health Care Food Packing Machine
- HEYI
- Guangzhou
- 15 days
- 500sets/month
Round Corner Bag Liquid Beverage Health Care Food Packing Machine， This automatic filling machine is suitable for filling condiment oil, bechamel , jam, shampoo etc, with very easy and convenient operation. It integrates the functions such as filling, sealing, printing date and cutting the redundant tail etc.Scope of application
It is suitable for automatic packaging of liquid of foods,medicine and chemicals,such as pesticide,shampoo,body foam bath lotion,facial cream,ingredient oil,fruit sauce,tomato ketchup and honey etc.
Round Corner Bag Liquid Beverage Health Care Food Packing Machine
Specifications for Round Corner Bag Liquid Beverage Health Care Food Packing Machine
Model | HY-YBY50 |
Filling range | 1-50ml |
Sachet size | W：25-100mm L：30-180mm |
Max. film width | 220mm |
Sachet type | Rounded back seal, easy to tear, |
Filling method | Pneumatic pump / magnetic pump |
Capacity | 20-35 ppm |
Power Voltage and consumption | 220V50-60HZ/2.0KW |
Air pressure and consumption | 0.3m³/min 0.6-0.8Mpa |
Dimension(L*W*H) | 670*850*1655mm |
Weight | 300KG |
Packaging film materials | PE laminated film, such as PET/AL/PE, PET/PE, Nylon/PE, etc. Thickness: 0.08~0.12mm(3 or 4 layers) Inner core diameter：75mm Outer roll diameter：300mm |

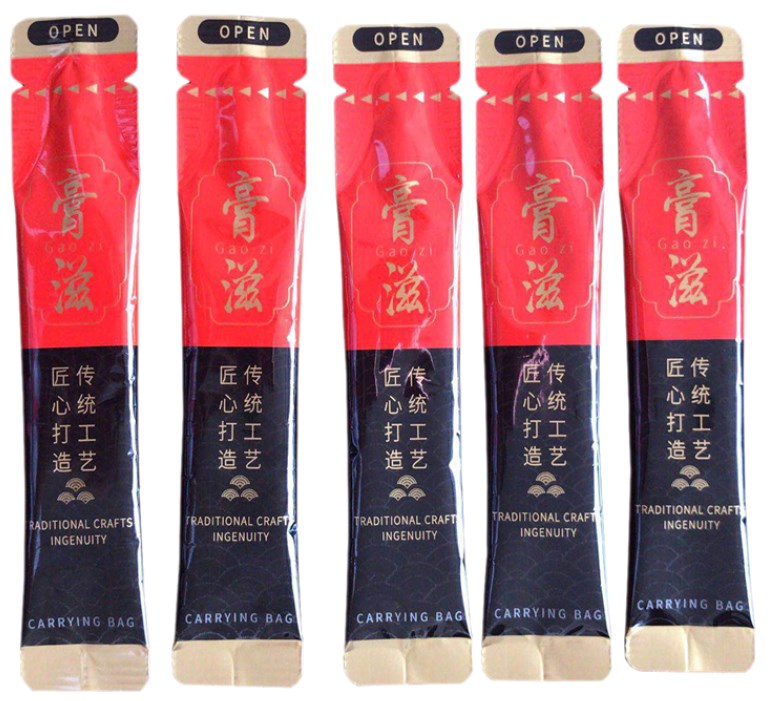

Bag sample as below：
Feature for Round Corner Bag Liquid Beverage Health Care Food Packing Machine
1. This machine can finish the following function automatically : fmaking bags-measuring--material filling-sealing-date code printing, all the work automatically;
2. Photoelectric and tracing system or computer system can be provided without your specific requirements.
3. The PLC controller has the advantages such as setting the length of the bag; the out put alarm and the speed and quantity with buttons;Our PLC from Germany Siemens.with a big touch screen,you can change everything in the touch screen.servo motor control this machine,so it is very stable and with good precision.
Function:
Multi function automatic liquid packing machine adapts to all kinds of liquid,like Ketchup, peanut butter, shampoo, bath wash, facial cream, garlic oil, foliar fertilizer,water,honey,sauce,paste etc.
FAQ:
Q1. What is your terms of packing?
*Use PE film to Shrink the machine well
*Wrapped the wooden case with metal frame
*Deliver them by sea or by air
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q3. How about your delivery time?
A: Generally, it will take 15 days for small packing machine after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery,if have any problem in our factory,our engineers will solve it for you.
Afrer-sale service:installation & direction:
If the clients need our technical staff to install and test(adjust) machine to his company when all the machine equipments are gotten. My factory can do it. the clients need to pay for some expenses(plane ticket, accommodation fee as the clients' standard at the local) and also supply service fee for installing
