Round Corner Bag Liquid Filling And Packing Machine
- HEYI
- Guangzhou
- 15 days
- 500sets/month
Round Corner Bag Liquid Filling And Packing Machine,can be used for all kinds of liquid.Like energy drinks,shower gel，shampoo，cream，honey, all kinds of liquid.It is a very nice.You can make different bag shape.irregular shape or round corner bag type is OK.
Packing liquid from 1ml to 50ml,just with different pump,1-15ml use a pump,5-50ml use a pump.
Round Corner Bag Liquid Filling And Packing Machine
Round Corner Bag Liquid Filling And Packing Machine,same machine can pack the following liquid and different bag type
1. enengy gel,energy drinks filling and packing machine
2. bag type like Bottle shape pouch packing machine,irregular shape bag type
3. Liuqid filling packing machine,pasty filling machine and round corner bag type machine is the name for this machine
Round Corner Bag Liquid Filling And Packing Machine Feature:
1. Machine auto does: bag-making, measuring volume & filling, bag sealing, special shape folding, cutting and counting capacity.
2. MITSUBISHI PLC controller, with Touch screen for parameter.
3. High precision Photocell sensor equipped for tracking the color mark designed on the bag material, so make sure the logo designing at same position on each bag.
4. Servo motor for bag pulling, precise in size and strong function.also with a 360 degree rotary function
5. Need air compressor to drive the machine,safe than electronic
6. We have solution for thick&high viscousity paste product, suitable for honey/syrum/peanut butter/chocolate/special chemical paste.
Specifications for Round Corner Bag Liquid Filling And Packing Machine
Model | HY-YBY50 |
Filling range | 1-50ml |
Sachet size | W：25-100mm L：30-180mm |
Max. film width | 220mm |
Sachet type | Rounded back seal, easy to tear, |
Filling method | Pneumatic pump / magnetic pump |
Capacity | 20-35 ppm |
Power Voltage and consumption | 220V50-60HZ/2.0KW |
Air pressure and consumption | 0.3m³/min 0.6-0.8Mpa |
Dimension(L*W*H) | 670*850*1655mm |
Weight | 300KG |
Packaging film materials | PE laminated film, such as PET/AL/PE, PET/PE, Nylon/PE, etc. Thickness: 0.08~0.12mm(3 or 4 layers) Inner core diameter：75mm Outer roll diameter：300mm |

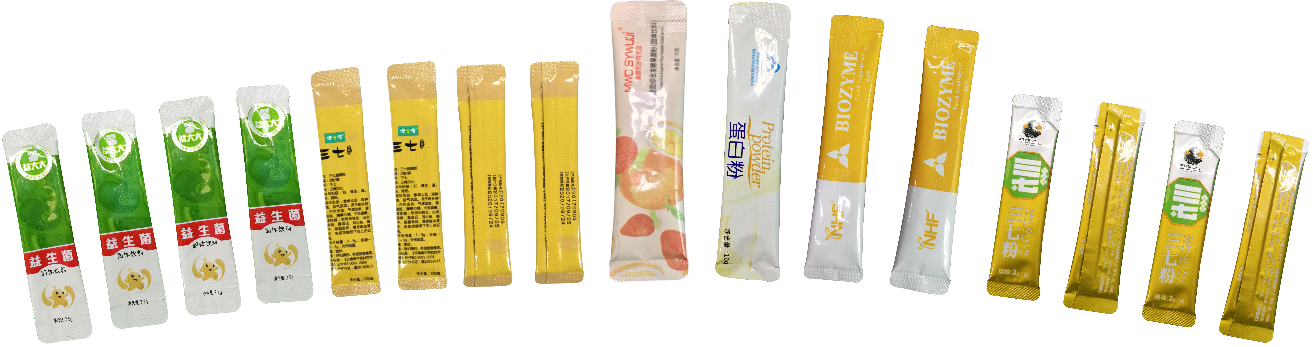

Bag sample:
FAQ for our liquid filling and packing machine:
1. how about our service:
24 Hours support by chat online or by phone
Lifelong and free technical support.
Service overseas: if the questions need to be solved face to face, we will dispatch an engineer to your door. Buyer is in charge of our engineer's Visa, tickets, commodity and living, salary cost usd50 per working day
2. How about our guarantee?
Machine parts is 100% same brand & quality as promise.for example:we promise give you the PLC from Germany,then we will give you this one.
Machine is verified and inspection and adjustments is completed as well as verified in writing.
Liquid packing machine will be produce per your all requirements.
Our warranty is one year for all of our packing machine,except easy wearing parts like sealing mould &blade and spare parts .5USD for each one heater.
4. How about our Payment ?
By 30% T/T in advance, 70% balance paid before shipment.
5. Which model is suitable for me?
First we will recommend a series depends on your product type.
If you are not sure which model is the best suitable, please send some sample raw material or show a video of the material, so we can suggest the right model to you.
6. How about the delivery time?
for small machine,within 15 days,if you need it urgently,some time there are some in stock,maybe 2 days is OK.for big machine,normally 15-20 days. Customized machine please kindly contact us for the delivery time.
