Rounded-corner Bag Type Small Stick Health Care Food Packing Machine
- HEYI
- Guangzhou
- 15 days
- 500sets/month
Rounded-corner Bag Type Small Stick Health Care Food Packing Machine.Application
It is suitable for automatic packaging of powder products with poor fluidity in food, health care and pharmaceutical industries, such as: freeze-dried powder, protein powder, gastrodia powder, pueraria powder, stone meal powder, notoginseng powder, whole grain powder, meal replacement powder , milkshake powder, ganoderma powder, bear bile powder, milk powder, coffee powder, solid beverage, etc.
Rounded-corner Bag Type Small Stick Health Care Food Packing Machine.
Do you want to look for an economical solution and popular bag design for your stickpack needs? Our this round corner bag type stickpack machine can accommodate to form different shapes of stickpack pouches. Perfect for products like coffee, drink mixes, and cannabis as well as liquids or gels, stick pack machines can accommodate different bag shapes including pour spouts, tear notches and easy-open options.It will bring a great step for your business.
Application of Rounded-corner Bag Type Small Stick Health Care Food Packing Machine.
It is suitable for automatic packaging of powder products with poor fluidity in food, health care and pharmaceutical industries, such as: freeze-dried powder, protein powder, gastrodia powder, pueraria powder, stone meal powder, notoginseng powder, whole grain powder, meal replacement powder , milkshake powder, ganoderma powder, bear bile powder, milk powder, coffee powder, solid beverage, etc.
Mechanical characteristics and product characteristics:
1. Long strip design, the capacity can be large or small, by setting the bag length value, can achieve different weight, reduce mold replacement;
2. Rounded shaped shape, can design the size of the nozzle, tear horizontally to prevent the material from spilling; the arc corner can also prevent children from scratching eye corners, increasing product safety;
3. Increase the vibration device to prevent the dust accumulation molding device from falling into the material feeding port, affecting the filling accuracy of the machine; at the same time, seal the material feeding hole through the food grade silica gel sheet to reduce the dust;
4. Punching die adopts HKS-9 material, after six processing techniques, high durability and long service life
5. The equipment is easy to operate, and one ordinary female worker can see 3 sets of equipment;
Specifications for Rounded-corner Bag Type Small Stick Health Care Food Packing Machine.
Model | HY-YBF50 |
Filling range | 1-50ml |
Sachet size | W：25-100mm L：30-180mm |
Max. film width | 220mm |
Sachet type | Rounded back seal, easy to tear, |
Filling method | Auger screw |
Capacity | 20-35 ppm |
Power Voltage and consumption | 220V50-60HZ/3.0KW |
Air pressure and consumption | 0.3m³/min 0.6-0.8Mpa |
Dimension(L*W*H) | 830*800*1800mm |
Weight | 300KG |
Packaging film materials | PE laminated film, such as PET/AL/PE, PET/PE, Nylon/PE, etc. Thickness: 0.08~0.12mm(3 or 4 layers) Inner core diameter：75mm Outer roll diameter：300mm |

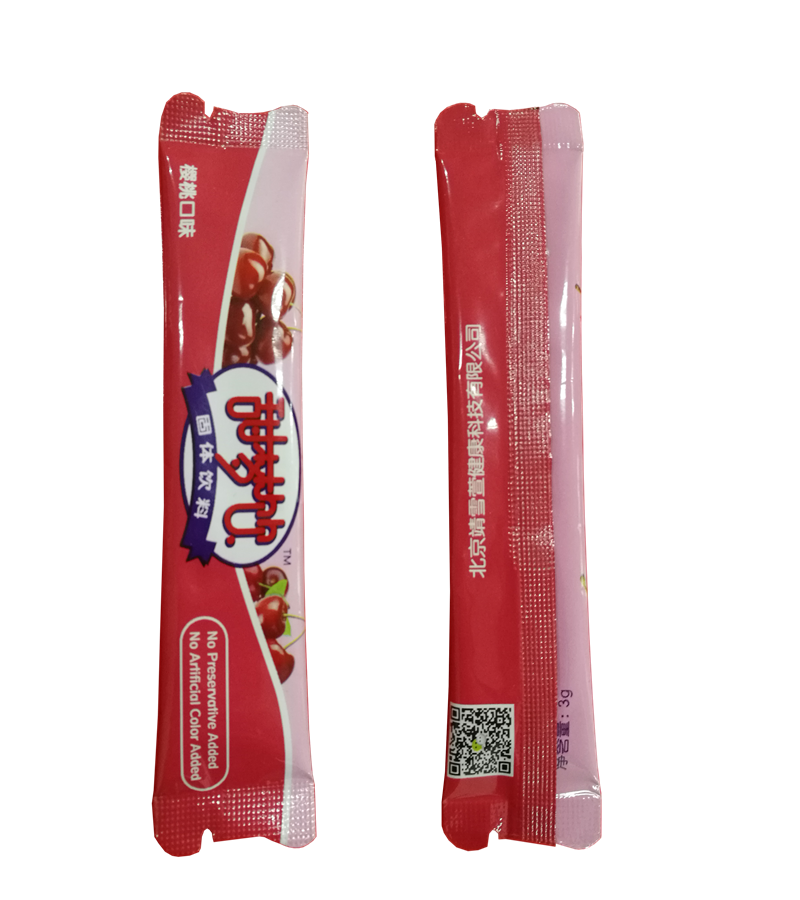

Bag sample:
