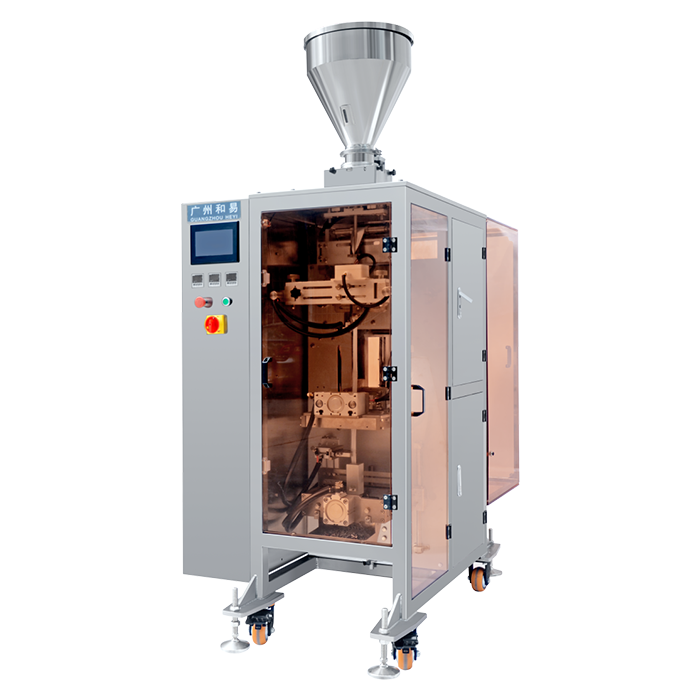

Rounded Corner Shape Foil Pouch Granular Sugar Packing Machine
- HEYI
- Guangzhou
- 15 days
- 500sets/month
Rounded Corner Shape Foil Pouch Granular Sugar Packing Machine,This machine is widely used to pack any loose,non-cohesive granule products of the food,phaeceutical,and chemical industries,such as soup mix,coffee,instant drink mix,desiccant,monosodium glutamate,sugar,salt,cereal etc.the ronder corner design is safe for children,Protect them from hurting hand.nice design for this market
Rounded Corner Shape Foil Pouch Granular Sugar Packing Machine
Main characteristic:
1)Imported PLC control system, simple-operating, visual touchscreen.
Servo film feeding system; correct register; sealing and cutting positions adopt automatic correction device; fullly automatic.
2)Intelligent temperature controller is used; correct temperature control; ensure nice, smooth seal.
Perfect automatic alarming protective function; reduce the consumption to the lowest.
3)Full packaging process including: automatic feeding, weighing, bag filling, date printing and automatic counting.
4)Type of bag making: according to customer's demand, the machine can produce pillow bags, punched hanging bags.
5)This Pepper granule packing machine is suitable for automatic packaging particle like frozen food, potato,beans, peanuts, seeds, grain, biscuits, nuts, tea,
dumplings, gourmet, coffee, sugar, candy, and also hardwares like screws, drawings, small auto parts, gem clips and many other granules.
Full Features:
1) This machine can finish these work automatically: measuring--making bag--coding (option)--filling--gas injection(option)--sealing--counting.
2) It has color control system which can get the complete trade mark design (photoelectricity control system).
3) The machine fix stepper motor controller,its advantage is precise,needless to adjust other parts
4) Intelligent temperature control by temperature controller to make heat balance better.use bilingual display screen control system and stainless steel cabinet
5) Fine packaging performance ,low noise ,clear sealing texture and strong sealing performance
6) With safe plastic box on rotating blade to avoid hurting operator's hands
7) Need to change new temperature controller,blade& pressing mode only after 3 years continuous operation,2 shifts a day and other parts is still good and safe freely)
8) With printer (to be able to code the date and batch number) and rotating blade(be able to adjust the length of bag and shape of bag notch edge packing.
9) Computer control system, photoelectric tracking, which improve the control precision, reliability and intelligence at the maximum limit.
10) Has fault display system, easy to operate and maintain.
11) Make punching blade after customer's special request.
Specifications for Rounded Corner Shape Foil Pouch Granular Sugar Packing Machine
Model | HY-YBK50 |
Filling range | 1-60ml |
Sachet size | W：25-100mm L：30-180mm |
Max. film width | 220mm |
Sachet type | Round corner sitck |
Filling method | Volumetric cups |
Capacity | 20-35ppm |
Power Voltage and consumption | 220V50-60HZ/3.0KW |
Air pressure and consumption | 0.3m³/min 0.6-0.8Mpa |
Dimension(L*W*H) | 830*800*1800mm |
Weight | 300KG |
Packaging film materials | PE laminated film, such as PET/AL/PE, PET/PE, Nylon/PE, etc. Thickness: 0.08~0.12mm(3 or 4 layers) Inner core diameter：75mm Outer roll diameter：300mm |

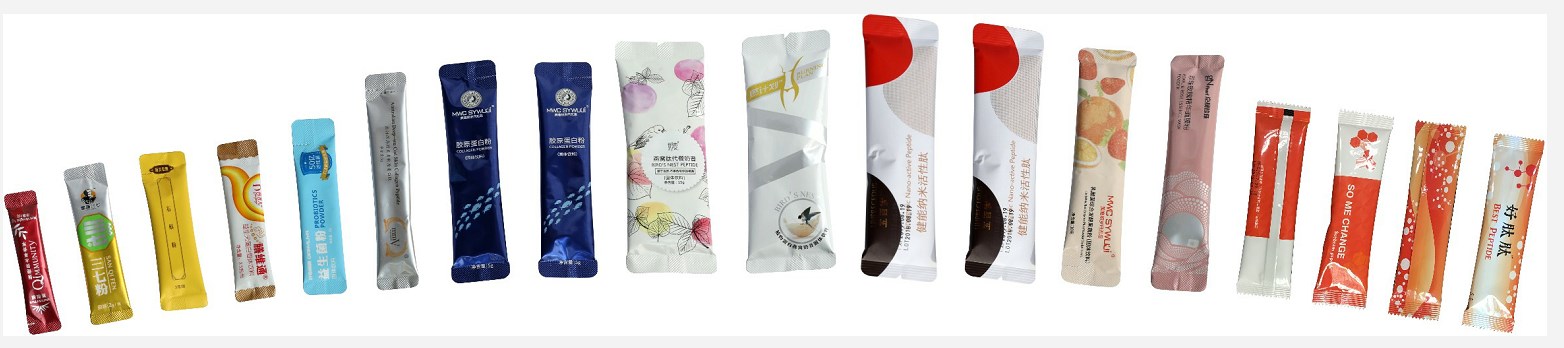

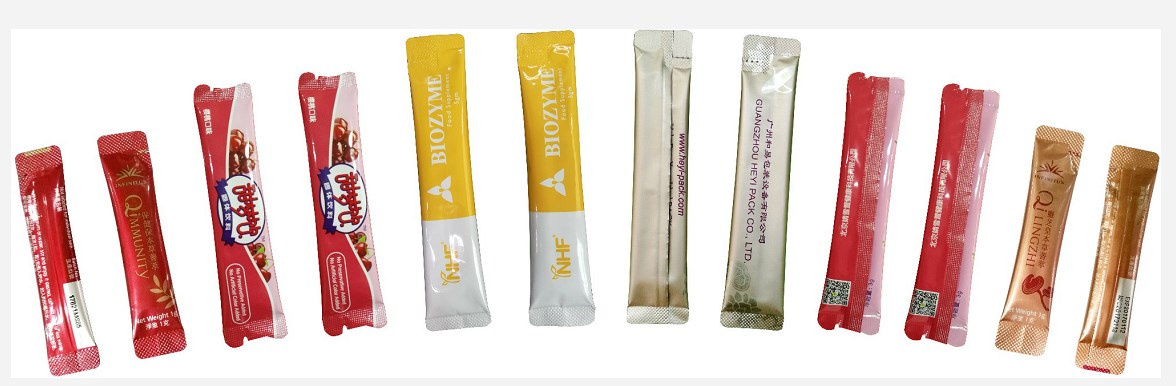

Bag sample:
