Vertical Form Fill And Seal Stick Pack Packaging Machine
- HEYI
- Guangzhou
- 15 days
- 5
Vertical Form Fill And Seal Stick Pack Packaging Machine,Application
It is suitable for automatic packaging of particles with good fluidity in food, health care and pharmaceutical industries, such as instant coffee, solid beverage, fruit enzyme powder, Baoji pills, white sugar, granules, Chinese medicine granules, etc.
Vertical Form Fill And Seal Stick Pack Packaging Machine
Specifications for Vertical Form Fill And Seal Stick Pack Packaging Machine
Model | HY-QK50 | HY-K50 |
Filling range | 1-50ml | 1-50ml |
Sachet size | W：30-100mm L：30-150mm | W：30-100mm L：30-150mm |
Max. film width | 220mm | 220mm |
Sachet type | 3 sides / 4 sides | 3 sides / 4 sides |
Filling method | Volumetric cups | Volumetric cups |
Control | SIEMENS PLC + TOUCH SCREEEN | EASY PACK control |
Capacity | 30-60ppm | 30-130ppm |
Power | 220V50-60HZ/1.0KW | 220V50-60HZ/1.0KW |
Air | 0.3m³/min 0.6-0.8Mpa | 0.3m³/min 0.6-0.8Mpa |
Materials | Case and contacting parts SUS304 | Case SUS202;Contacting parts SUS304 |
Dimension(L*W*H) | 880*700*1750mm | 670*850*1655mm |
Weight | 250KG | 200KG |
The bag making process is fully automatically, metering and filling granular (filling machine required), sealing, then cutting the bags. We can offer a considerable variety of bags, for example; standard pillow bags, block bottom, side gusset bags, euro slot bags, handles.
Our machines are manufactured to a modern design with an outer cabinet made from 304 stainless steel,whole set machine with SS304,with big touch screen and PLC control system. the machines are of a robust construction and have a long life, with easy maintenance and easy size parts changeover. These machines have an excellent reputation working on multi-shift production cycles.we have sold these granular packing machine for more than 20 years.
Mechanical characteristics and product characteristics:
1. The equipment is easy to operate and easy to maintain.
2. The whole bracket is made of all stainless steel, non-outsourced stainless steel;
3. The equipment is compatible, and different specifications can be realized by changing the mold;
4. Good fluidity materials, no dust, three-side seal design, electric high-speed models, capacity of 120 bags / minute;
5. Auxiliary equipment: loading machine + ribbon coding machine

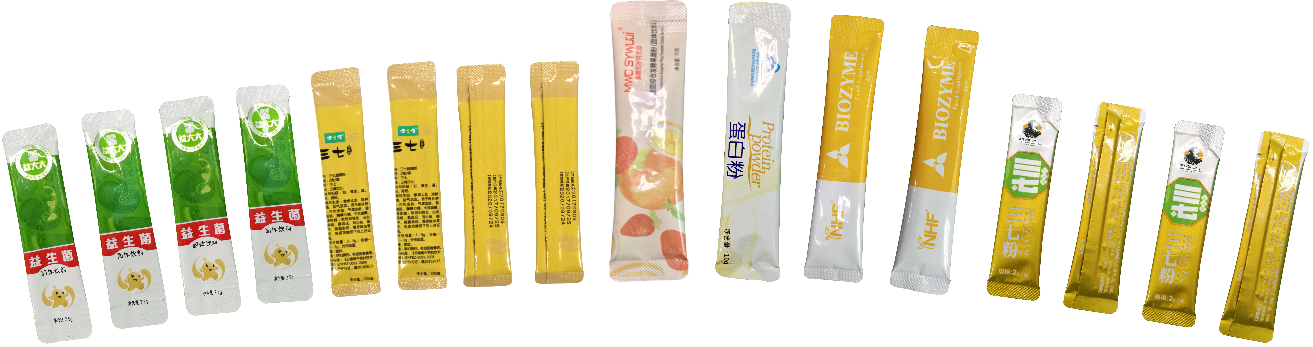

Bag sample as below:
Stick packs and sachets are suitable for multipack packaging, no matter they contain pharmaceuticals, instant beverages, sugar, salt, spices or condiments. Pouches are widely used for stick packs of instant coffee, juice powder or honey. Single portions of vitamin /protein powder or cosmetic products are often multipacked in a pouch. Now you can pack any kind of single portioned product in a pouch with a single machine. rounded corner bag type and normal stick back type packing machine.
Any packing idea,contact with Guangzhou Heyi packing machine company,a factory with 20 years experience.WIth creative bag design for your reference.You will get what you want.
