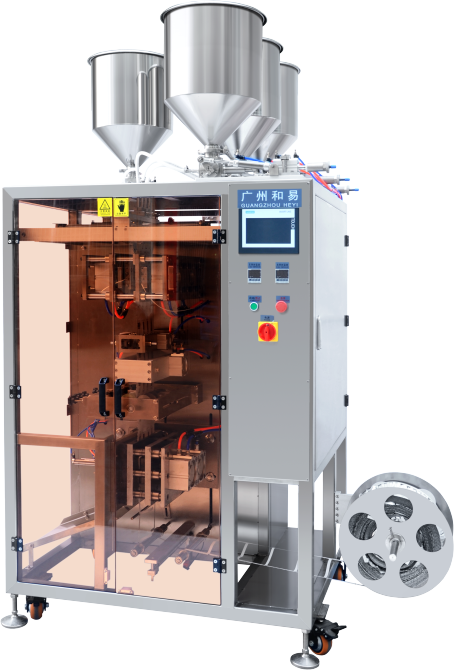

Vertical Irregular Shaped Cosmetic Sample Sachet Packing Machine
- HEYI
- Guangzhou
- 15 days
- 500sets/month
Vertical Irregular Shaped Cosmetic Sample Sachet Packing Machine,a full automatic filling and packing machine.just put the the roll film on the machine,the machine will finish all function.making bags,filling,metering,sealing,cutting etc.
This irregular cosmetic packing machine can pack sauce, hand & facial cream, shampoo, honey, lotion and ointments & butter, ketchup, garlic paste, petroleum jelly,lotus bean sauce, bean sauce, cheese and soy sauce etc.
Vertical Irregular Shaped Cosmetic Sample Sachet Packing Machine
Mechanical characteristics and product characteristics:
1. Suitable for 1-20ml emulsion cream or water-based product trial packaging;
2. This host can be customized to one out of three, or you can customize one out of four (single or even);
3. The die cutting die is formed once, the cut is flat, no wrong side, no burrs;
4. Punching die adopts HKS-9 material, after six processing techniques, high durability and long service life
5. This equipment is complicated to operate, requires professional technical operators, or arrange special personnel to come to our company for 3-5 days of professional training
Specifications for Vertical Irregular Shaped Cosmetic Sample Sachet Packing Machine
Model | HY-IY420 | HY-IY620 |
Filling range | 1-20ml/10-30ml | 1-20ml/10-50ml |
Lanes | 1by1/1by2/1by3/1by4 | 1by3/1by4/1by5/1by6 |
Sachet size | W：25-90mm L：30-170mm | W:30-86mm L:30-170mm |
Max. film width | 420mm | 620mm |
Sachet type | Irregular shape sachet | Irregular shape sachet |
Filling method | Pneumatic pump / magnetic pump | Pneumatic pump / magnetic pump |
Capacity | 80-100 PPM | 80-150 PPM |
Power Voltage and consumption | 220V50-60HZ/4.5KW | 220V50-60HZ/5.5KW |
Air pressure and consumption | 0.6m³/min 0.6-0.8Mpa | 0.6m³/min 0.6-0.8Mpa |
Dimension(L*W*H) | 1500*1400*2155mm | 1700*1400*2160mm |
Weight | 550KG | 600KG |
Packaging film materials | PE laminated film, such as PET/AL/PE, PET/PE, Nylon/PE, etc. Thickness: 0.08~0.12mm(3 or 4 layers) Inner core diameter：75mm Outer roll diameter：300mm-500mm | |

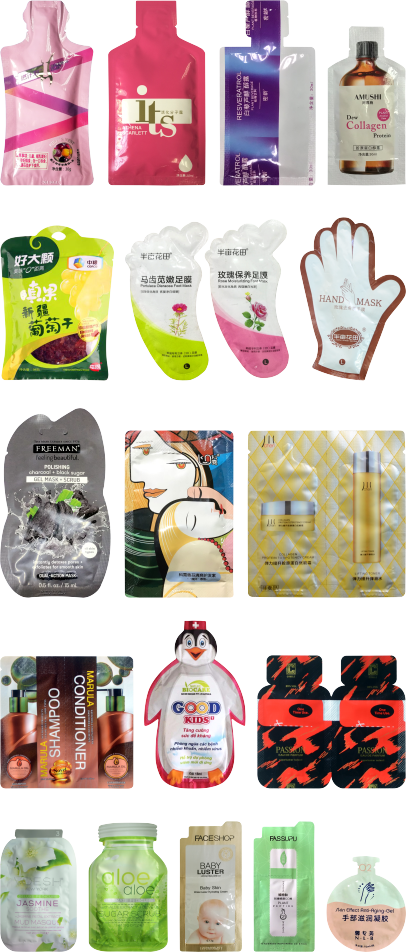

Bag sample:
Company information:
Established in year 1999, located in Baiyun Distrcit, Guangzhou HEYI PACK Co., Ltd. is specialized in designing, manufacturing and sales of automatic form-fill-seal sachet packaging machines, widely used in chemical, pharmaceutical, food, health products, cosmetics and other processing and production industries. With experienced hardware and software engineers, we are capable of both ODM & OEM production.
Main products: liquid packaging machine, granule packaging machine, powder packaging machine, tablets packaging machine, multi-material packaging machine, multi-lane packaging machine etc.,
Sachet types: Three sides seal sachet, four sizes seal sachet, pillow stick sachet, irregular shape sachet, etc.
Three Guarantees policy:
(1). Machine user training
(2). Machine maintenance
(3). Technical support
