Automatic Irregular Shape Sachet Face Wash Bag Packing Machine
- HEYI
- Guangzhou
- 15 days
- 500sets/month
Automatic Irregular Shape Sachet Face Wash Bag Packing Machine,It is used to pack sauce-like and paste substance in food industry like honey, medicine industry and chemicals industry, etc.a nice and easy to operate machine,you can have your own design,as long as you want,we can do the machine for you.If you just start it and don't have a detailed design we aslo can introduce some other customer's design to you.
Automatic Irregular Shape Sachet Face Wash Bag Packing Machine
Application:
It is suitable for packaging kinds of fine liquid products in special irregular sachet, such as kethcup,engery drink,jam, honey, and some other liquid makeup products like skin milk, face cream etc.
Features:
1. This irregular packaging machine can automatically perform all the functions at one time;such as: filling, weighing, bag forming, sealing, cutting, counting and date code printing, etc.
2. The machine can be equipped with supporting machines like date coder.
Specifications for Automatic Irregular Shape Sachet Face Wash Bag Packing Machine
Model Number | HY-IY320 |
Filling Range | 1-20ml/10-50ml |
Sachet size | W:30-130mm L:30-170mm |
Max. film width | 320mm |
Sachet type | Irregular shape sachet |
Filling method | Pneumatic pump / magnetic pump |
Capacity | 25-40 ppm |
Power Voltage and consumption | 220V50-60HZ/4.5KW |
Air pressure and consumption | 0.4m³/min 0.6-0.8Mpa |
Dimension(L*W*H) | 920*1291*2173mm |
Weight | 450KG |
Packaging film materials | PE laminated film, such as PET/AL/PE, PET/PE, Nylon/PE, etc. Thickness: 0.08~0.12mm(3 or 4 layers) Inner core diameter：75mm Outer roll diameter：300mm-500mm |

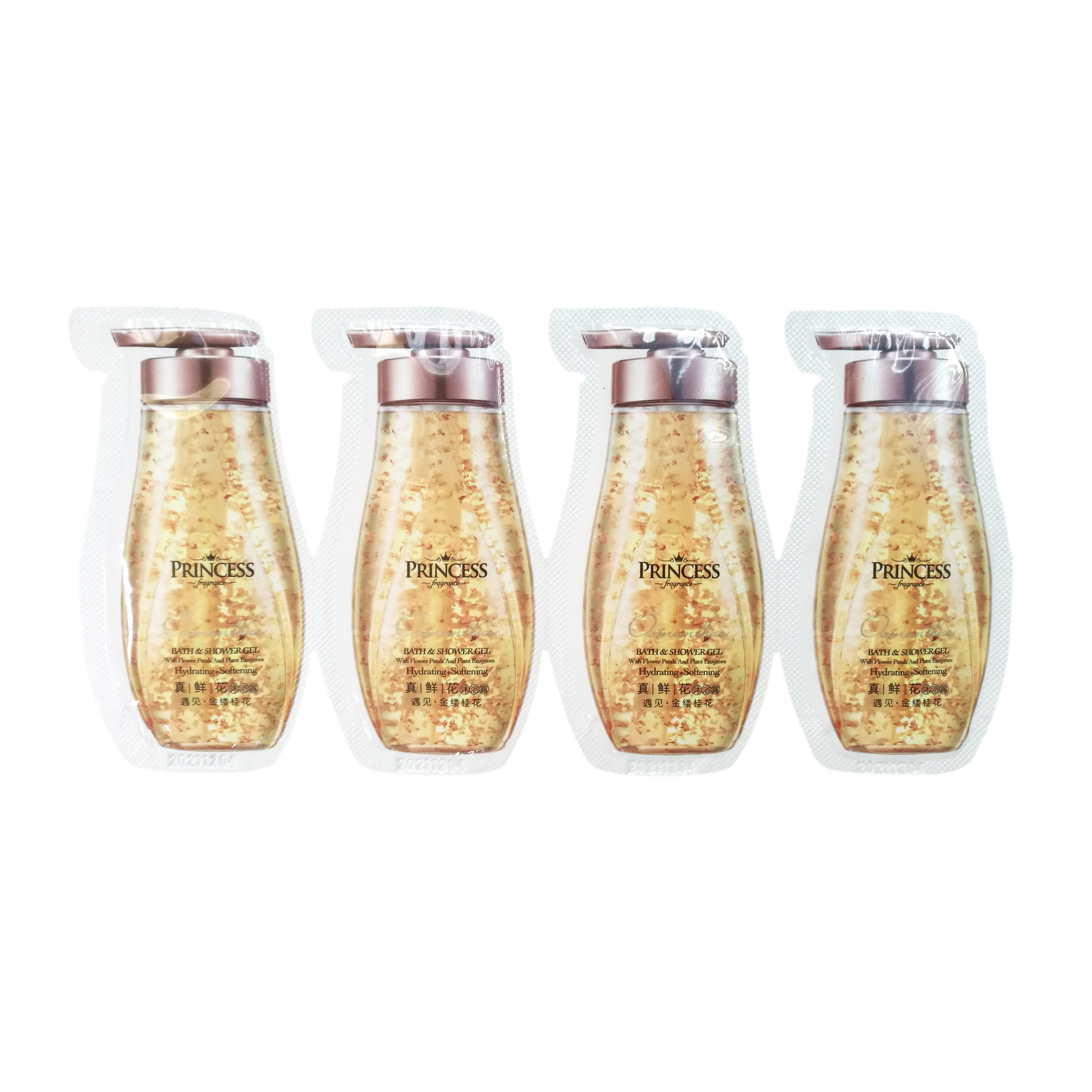

Bag sample as below:
FAQ:
01:How to operate the machine?We start to use the machine at the first time?
Answer:We have operation video and instruction book and also have engineers to user’s company
02.How to repair or change when some parts are broken?
Answer:Factory will make fixed video as the problems the users mentioned
03:How to maintain the machine?
Answer:Maintain manual will note how to do for users
04:How to choose the most suitable packing machine?
Answers:It deepends on the products.Weight of package,and bag type and bag’s size
