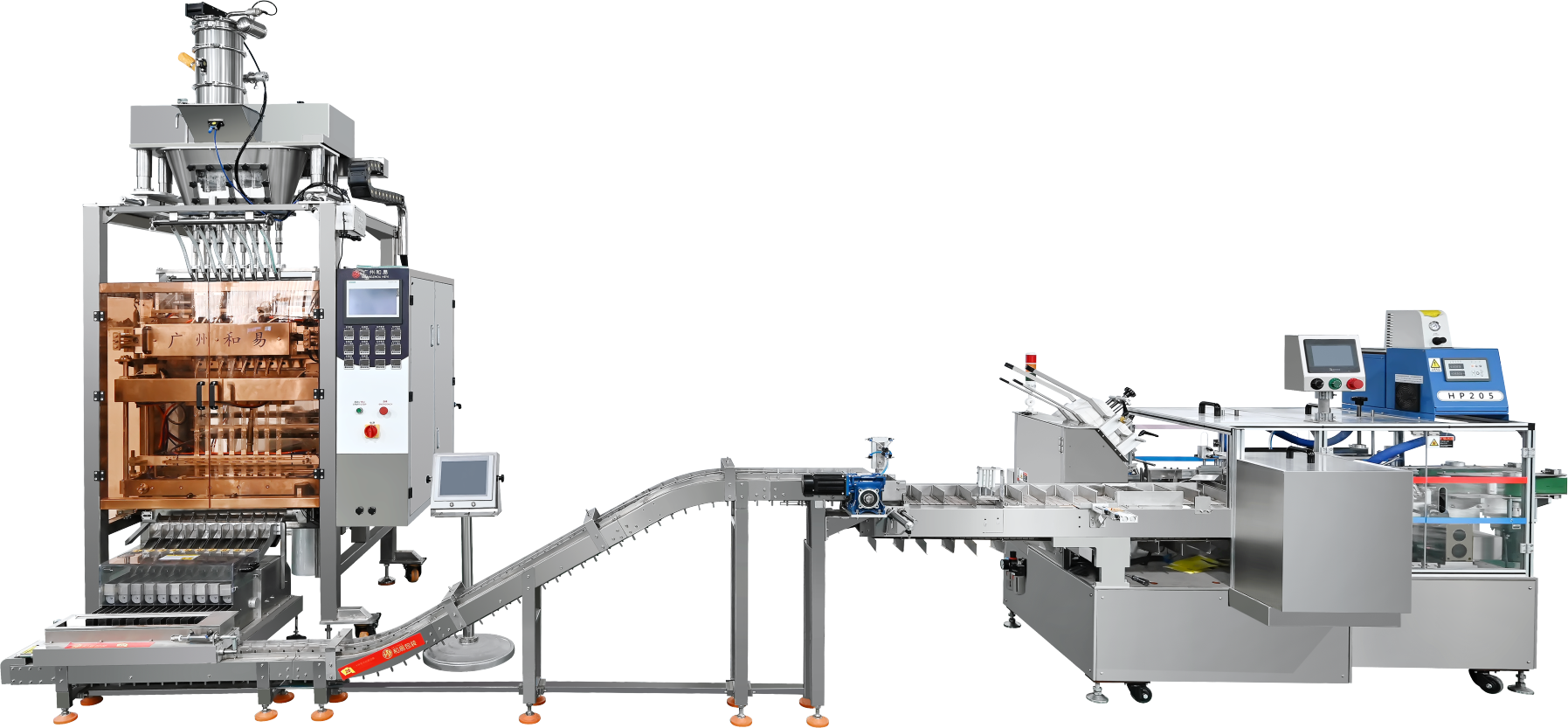

Automatic stick powder packing and cartoning packing machine production line

  • Automatic stick powder packing and cartoning packing machine production line
  • Automatic stick powder packing and cartoning packing machine production line
  • Automatic stick powder packing and cartoning packing machine production line
Automatic stick powder packing and cartoning packing machine production line
  • HEYI
  • Guangzhou
  • 15 days
  • 500sets/month

Automatic stick powder packing machine,use roll film,make bags automatically,filling powder,then count the bags pack into one bag automatically,one worker is enough to operate whole set machine.improve production and save labor cost,milk powder packing machine,coffee powder packing machine




stick powder packing and cartoning packing machine

stick powder packing and cartoning production line


Automatic stick powder packing machine,use roll film,make bags automatically,filling powder,then count the bags pack into one bag automatically,one worker is enough to operate whole set machine.improve production and save labor cost,milk powder packing machine,coffee powder packing machine


Packing machine and cartoning machine,Multi-row powder packaging machine


Application

It is suitable for automatic packaging of powder products with poor fluidity in food, health care and pharmaceutical industries, such as: freeze-dried powder, protein powder, gastrodia powder, pueraria powder, stone meal powder, notoginseng powder, whole grain powder, meal replacement powder , milkshake powder, ganoderma powder, bear bile powder, milk powder, coffee powder, solid beverage, etc.


Specifications

Model

HY-YF520

HY-YF720

Filling range

1-20ml

1-50ml

Rows

1by6

1by6, 1by8, 1by10

Sachet size

W25-38mm L30-170mm

W25-55mm L30-170mm

Max. film width

520mm

720mm

Sachet type

Stick with round corners

Stick with round corners

Filling method

Auger screw

Auger screw

Capacity

120-180ppm

200-300ppm

Power Voltage and consumption

220V50-60HZ/4.5KW

220V50-60HZ/4.5KW

Air pressure and consumption

0.6m³/min 0.6-0.8Mpa

0.6m³/min 0.6-0.8Mpa

Dimension(L*W*H)

1410*1700*2500mm

1540*1700*2500mm

Weight

600KG

650KG

Packaging film materials

PE laminated film, such as PET/AL/PE, PET/PE, Nylon/PE, etc.

Thickness: 0.08~0.12mm(3 or 4 layers)

Inner core diameter75mm

Outer roll diameter500mm



Main components:

PLC controller

Siemens/Germany

10.1’touch screen

Siemens/Germany

Temperature controller

Omron/Japan

Relay

Omron/Japan

Main motor

Panasonic / Japan

Servo motor

Panasonic / Japan

Power switch

Schneider / France

Photo electricity

SICK / Germany

Cylinder

SMC/Japan

Start button

Schneider / France

Quick stop button

Schneider / France

Material

Whole set machine with SUS304

Counting beltthis belt can conveyor the bag one by one and count your wanted quantity automaticallythen carton machine to pack them into box



carton machine

Parameter

Product

Pendingdepending on customer’s requirements

Box size

Pendingdepending on customer’s requirements

Scope of paper requirements




Carton other requirements



The indentation of the carton is not less than 0.4mm, it has a pre-folding effect, there should be no glue leakage in the box, and the ears need to be rounded
Material and carton clearance requirements

Unilateral clearance between material and carton ≥ 2mm

Packing specifications

Pendingdepending on customer’s requirements

Cartoning machine production capacity



15-30 boxes/min (specifically according to the front-end incoming speed)
Total power of the whole machine

5.0KW

Machine size

L6292*W1325*H1600 mm

Machine weight

2.5Tons

Main part for carton machine

Number

Name

brand

1

PLC

Mitsubishi/Japan

2

Touch screen

Weinview/Taiwan

3

Frequency converter

China

4

motor

China

5

solid-state relay

China

6

power switch

China

7

intermediate relay

China

8

switch

China

9

photoelectric

Omron

10

encoder

Omron

11

air cylinder

AirTAC

12

solenoid valve

AirTAC

13

rotary actuator

SMC
