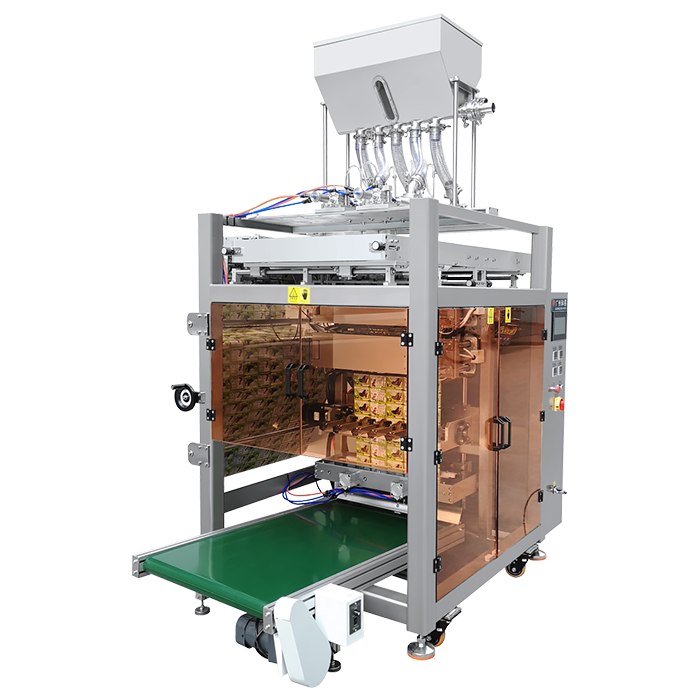

Multi Lanes Sachets Shampoo And Hair Conditioner Packing Machine
- HEYI
- Guangzhou
- 15 days
- 500sets/month
Multi Lanes Sachets Shampoo And Hair Conditioner Packing Machine
Application
It is suitable for automatic packaging of liquid paste products in daily chemical, food, health care and pharmaceutical industries, such as: mouthwash, cream, toothpaste, etc.; enzyme drink, enzyme jelly, energy supplement, etc.; syrup, red ginseng drink , grain health cream, etc.; hemorrhoid cream, ointment, etc.;
Multi Lanes Sachets Shampoo And Hair Conditioner Packing Machine
pecifications for Multi Lanes Sachets Shampoo And Hair Conditioner Packing Machine
Model | HY-Y880 | HY-Y1080 |
Filling range | 1-50ml | 1-50ml |
Rows | 1by4, 1by6 | 1by6, 1by8, 1by10 |
Sachet size | W：25-100mm L：30-170mm | W：25-90mm L：30-170mm |
Max. film width | 880mm | 1080mm |
Sachet type | Four sides seal | Four sides seal |
Filling method | Piston pump | Piston pump |
Capacity | 80-120ppm | 200-350ppm |
Power | 220V50-60HZ/4.5KW | 220V50-60HZ/4.5KW |
Air | 0.6m³/min 0.6-0.8Mpa | 0.6m³/min 0.6-0.8Mpa |
Dimension(L*W*H) | 1500*1620*2500mm | 1600*1820*2500mm |
Weight | 600KG | 650KG |
Main Features of multi lanes shampoo packing machine
(1) Simple structure, easy in installation and maintation.
(2)PLC control system with stable working machine.With a big touch screen,you can change everything in the touch screen.
(3) Adopting advanced famous brand components in pneumatic parts ,electric parts and operation parts.
(4)With high speed and production capacity.
(5) 304 stainless steel for parts contacted material to ensure sanitary.SS304 meet the requirements of food safety.
(6) Advanced PLC control system, from Germany or Japan,running in a high automatization and intellectualization
(7)Attention:normally for some small bags with four side sealing bag type.

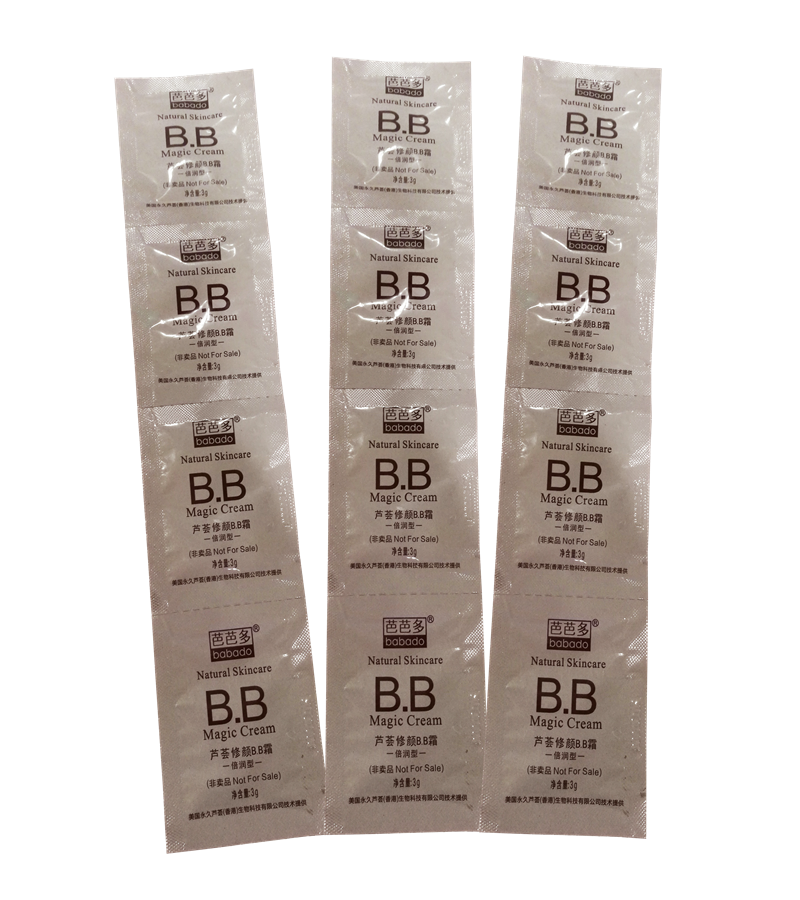

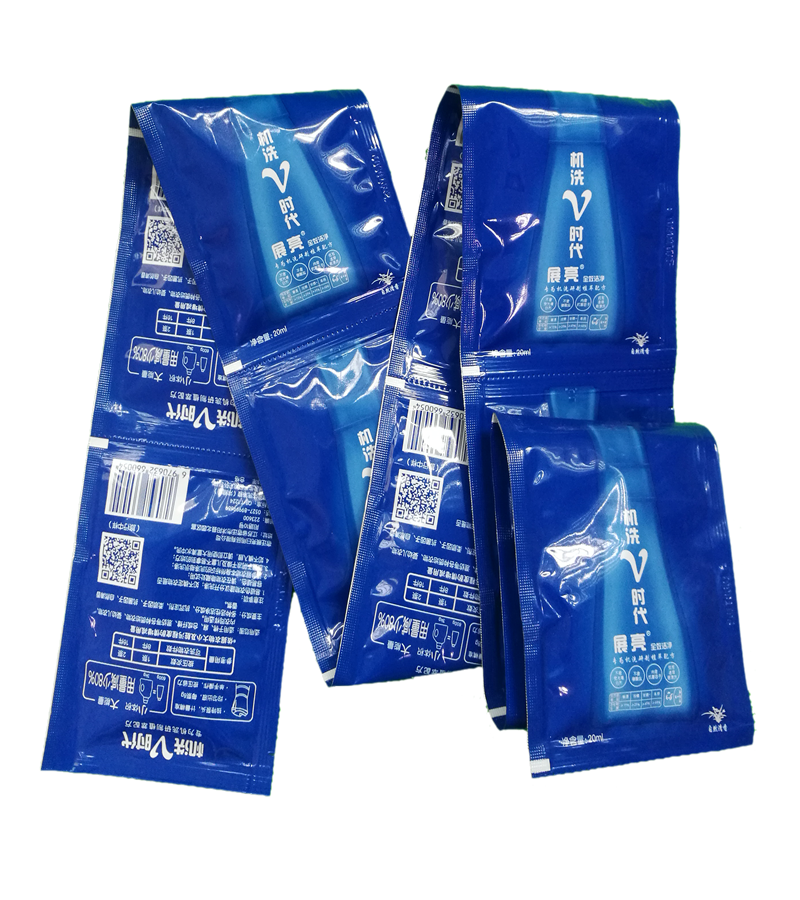

Bag sample:
Full Characters:
1) Guangzhou Heyi Multi-lines packing machine adopted advanced PLC and photoelectric control system.
2) The machine be able to weight, bag-making, filling, sealing, cutting, lot number, cutting easy tearing notch etc. automatically.
3) Servo Motor, good and fast speed and very high accuracy and more durable.
4) To has color control system which can get the complete trade mark design.
5) Intelligent temperature control by temperature controller to make heat balance better. Using bilingual (English and) Chinese) display screen control system and stainless steel (SS304) cabinet.
6) Advantage: to operate simply; high accuracy; save electricity& speed fast.High speed
7) With Original Imported PLC Control System, make machine very good stability, good use, durable in using time
